AlphaBot2 robot building kit for BBC micro:bit (no micro:bit)

: ROB05026
€81.22
€73.09 Save €8.13

This AlphaBot2 robot kit is designed to use with the BBC micro:bit (not included). It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, Bluetooth/2.4G remote control, etc.

Thanks to the highly integrated modular design, it is fairly easy to assemble, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Note: this product requires two 14500 batteries to work, which are NOT included and should be purchased separately.

Note: the controller micro:bit is NOT included.

Overview

This AlphaBot2 robot kit is designed to use with the BBC micro:bit (not included). It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, Bluetooth/2.4G remote control, etc.

Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.

AlphaBot2 Features

AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.

AlphaBot2-Base, the lower base chassis:

  • 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking
  • Onboard modules like line tracking, obstacle avoiding, needs no messy wiring
  • TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating
  • N20 micro gear motor, with metal gears, low noise, high accuracy
  • Onboard RGB LEDs, true color lighting, pretty cool

AlphaBot2 for micro:bit, the upper adapter board for controller:

  • micro:bit dedicated connector, for easily connecting with the micro:bit
  • MP1584 voltage regulator, provides stable 5V output
  • RT9193-33 voltage regulator, provides stable 3.3V voltage to the micro:bit
  • TLC1543 AD acquisition chip, allows the micro:bit to use analog sensors
  • PCA9685 PWM control chip, I/O expander
  • Onboard buzzer to play music

What's on the AlphaBot2-Base

AlphaBot2-Base on board resource

  1. AlphaBot2 control interface: for connecting sorts of controller adapter board
  2. Ultrasonic module interface
  3. Obstacle avoiding indicators
  4. Omni-direction wheel
  5. ST188: reflective infrared photoelectric sensor, for obstacle avoiding
  6. ITR20001/T: reflective infrared photoelectric sensor, for line tracking
  7. Potentiometer for adjusting obstacle avoiding range
  8. TB6612FNG dual H-bridge motor driver
  9. LM393 voltage comparator
  10. N20 micro gear motor reduction rate 1:30, 6V/600RPM
  11. Rubber wheels diameter 42mm, width 19mm
  12. Power switch
  13. Battery holder: supports 14500 batteries
  14. WS2812B: true color RGB LEDs
  15. Power indicator
  16. 5V USB battery charging port
  17. Power indicator

What's on the AlphaBot2 for micro:bit (Adapter Board)

AlphaBot2 for micro:bit on board resource

  1. micro:bit connector
  2. AlphaBot2-Base header: for connecting with the base board
  3. RT9193-33: 3.3V voltage regulator, stable power supply for the micro:bit
  4. PCA9685: PWM control chip, I/O expander, I2C interface
  5. TLC1543: 10-bit AD acquisition chip, allows the micro:bit to use analog line tracking sensor
  6. Buzzer
  7. MP1584 5V voltage regulator

AlphaBot2-for-micro-bit illustration AlphaBot2-for-micro-bit illustration AlphaBot2-for-micro-bit illustration

Note: the 2.4G gamepad is NOT included in the price, besides, totally two micro:bit are required for 2.4G RF remote control.

micro:bit Robot AlphaBot2

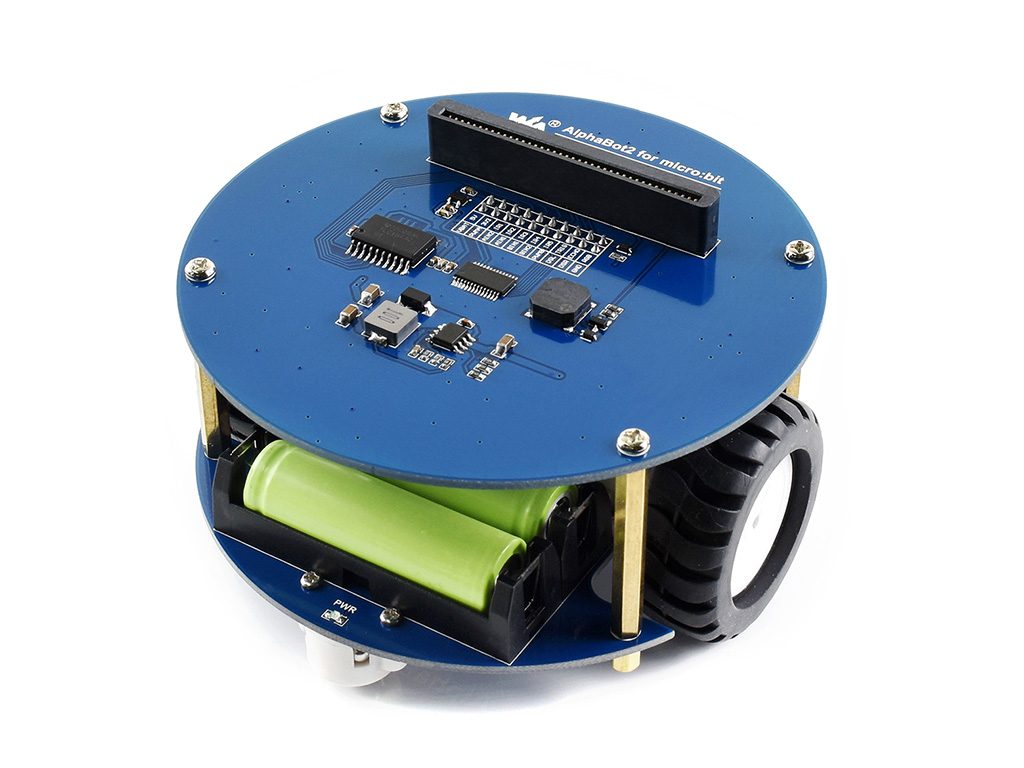

AlphaBot2 for micro:bit top view

micro:bit Robot AlphaBot2
AlphaBot2 for micro:bit bottom view

micro:bit Robot AlphaBot2
AlphaBot2-Base top view

micro:bit Robot AlphaBot2
AlphaBot2-Base bottom view

micro:bit Robot AlphaBot2
AlphaBot2 for micro:bit robot side view

micro:bit Robot AlphaBot2
AlphaBot2 for micro:bit robot side view

micro:bit Robot AlphaBot2

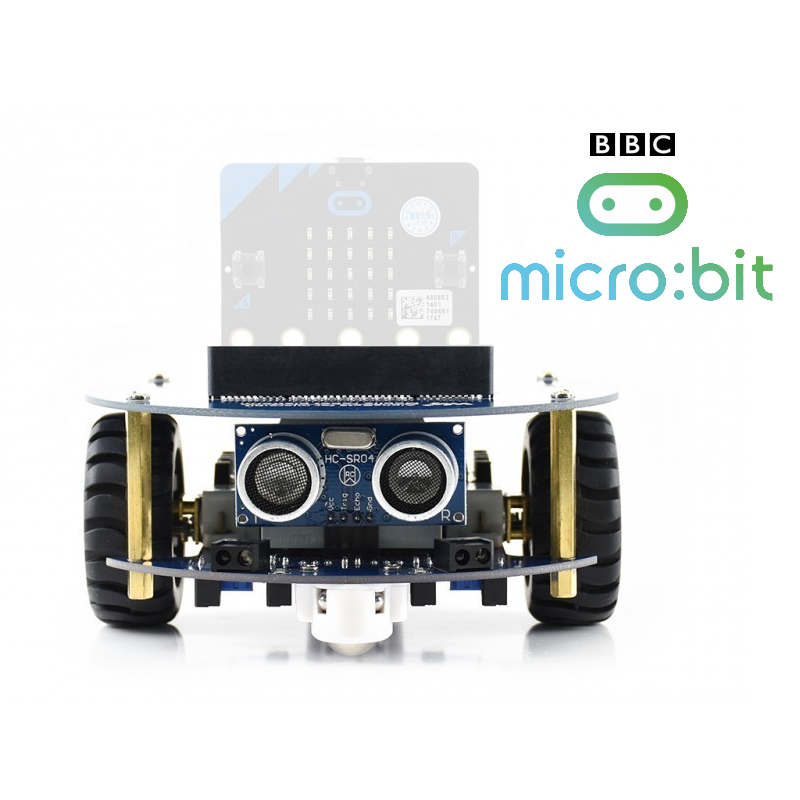

AlphaBot2 for micro:bit robot front view

micro:bit Robot AlphaBot2
AlphaBot2 for micro:bit robot back view

Dimensions

AlphaBot2-Base dimensions

Development Resources

Wiki : www.waveshare.com/wiki/AlphaBot2_for_micro:bit

Selection Guide

PACKAGE CONTENTSALPHABOT2 ROBOT KITS
ITEMDESCRIPTIONAR ACCEARPIZERO ACCEPIZERO WPIZERO WHPI ACCEPIPI3 B+M:B ACCEM:B
Raspberry Pi 3 Model B Raspberry Pi 3 Model B
Raspberry Pi 3 Model B+ Raspberry Pi 3 Model B+
AlphaBot2-Pi Adapter board, for connecting Raspberry Pi
Raspberry Pi Zero W Raspberry Pi Zero W (built-in WiFi)
Raspberry Pi Zero WH Raspberry Pi Zero WH (built-in WiFi, pre-soldered headers)
AlphaBot2-PiZero Adapter board, for connecting RPi Zero W/WH
UNO PLUS Enhanced Arduino compatible board
AlphaBot2-Ar Adapter board, for connecting Arduino
Dual-mode Bluetooth Dual-mode Bluetooth module
micro:bit BBC micro:bit, a pocket-sized computer
AlphaBot2 for micro:bit Adapter board, for connecting micro:bit
AlphaBot2-Base Motor driver, integrates sensors for obstacle avoiding, line tracking
Ultrasonic sensor Ultrasonic obstacle avoiding, ranging
IR remote controller remotely control the robot
RPi Camera (B)  Raspberry Pi camera, adjustable focus
SG90 Servo, working with the pan head, controlling the rotation of the camera
Micro SD Card 16GB 16GB Miro SD Card, class 10
5V 3A Power Adapter Provides 5V 3A power supply, micro USB plug

Note: Due to the structure design, ultrasonic sensor module can NOT be used with the AlphaBot2-Pi kit.

Package Content

Weight: 0.225 kg

Note: this product requires two 14500 batteries to work, which are NOT included and should be purchased separately.

Note: the controller micro:bit is NOT included.

AlphaBot2 for micro:bit Acce Pack

  1. AlphaBot2 for micro:bit (adapter board) x1
  2. AlphaBot2-Base (base chassis) x1
  3. Ultrasonic sensor x1
  4. FC-20P cable 8cm x1
  5. USB type A plug to micro B plug cable x1
  6. AlphaBot2 for micro:bit screws x1
  7. Screwdriver x1 (Extra Free)
