SX1262 LORA NODE MODULE FOR RASPBERRY PI PICO, LORAWAN 433MHZ

:COM05091
€18.95
Tax included

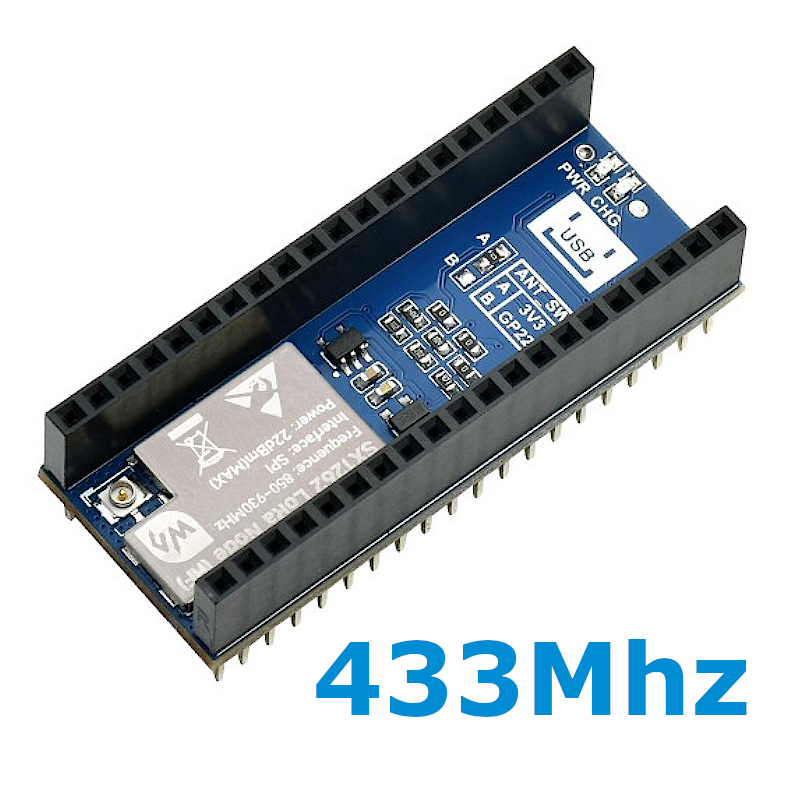

The Pico-LoRa-SX1262-868M is a LoRa node expansion module designed for Raspberry Pi Pico based on SX1262, which supports LoRaWAN protocol and EU868 band. It is allowed to connect the TTN, TTS servers through a LoRa gateway to use LoRa Cloud service fast and easily.

This is the 433Mhz version, if you want the 868Mhz, just click Here.

If you want to know more about this product, please check the Wiki Page.

Note: Raspberry Pi Pico is not included.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.






Features at a glance

The Pico-LoRa-SX1262-XXXM is LoRa node expansion module designed for Raspberry Pi Pico based on SX1262 with better performance than the SX127X series. The LoRa modulation technology solves the balancing problem between transmission distance, interference immunity, and power consumption that traditional solutions aren't able to deal with.

It supports LoRaWAN protocol, which allows it to connect the TTN, ChirpStack servers through a LoRa gateway to use LoRa Cloud service fast and easily.

  1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards

  2. Supports LoRaWAN protocol, different frequency bands are available

  3. Adopts active temperature compensation crystal oscillator, ensuring stable long-term operating in extreme high/low temperature conditions

  4. Supports FSK, GFSK, LoRa modulations, outstanding anti-blocking performance and ultra long communication distance

  5. PH1.25 battery header and recharge controller, allows connecting rechargeable Lithium battery

  6. High receiving sensitivity (up to -148dBm), programmable emitting power (up to 22dBm)

  7. Supports preamble detection, with CRC, up to 256 bytes data packet engine

  8. Comes with development resources and manual (example in C)




Specifications

Frequency band 433M
(410~525MHz)		 868M
(863~870MHz)		 915M
(902~930MHz)
RFID SX1262
Emiting power 22dBm
Emiting current 107mA@22dBm 118mA@22dBm
Receiving current 5.3mA@125KHz
Modulation LoRa/(G)FSK
Operating voltage 3.3V
Communication bus SPI
Operating temperature -40 ~ 85℃
Dimensions 21.00 × 52.00mm



Raspberry Pi Pico header compatibility

Onboard female pin header for direct attaching to Raspberry Pi Pico


Raspberry Pi Pico is NOT included.




What's on board

  1. Raspberry Pi Pico header
  2. Status indicators
    PWR: power indicator
    CHG: recharge indicator
  3. RF switch control
    A: controlled by high level
    B: controlled by GPIO22
  1. MCP73831 recharge IC
  2. SX1262 module
  3. IPEX 1 antenna connector
  4. Power switch
  5. PH1.25 battery header



Pinout definition




Application examples

Industrial control, intelligent home, and data acquisition...




Outline dimensions



Resources & Services

Wiki: Pico-LoRa-SX1262



Package Content

Weight: 0.033 kg

  1. Pico-LoRa-SX1262-433Mhz x1

  2. 3.7V 600mAh Li-po battery x1

  3. Antenna 2DB x1

  4. IPEX1 to SMA wire x1
