• New

HC-35 4X4+4 Matrix Keyboard Module with Push Buttons and LED

: LCD02018
€3.50
Tax included

4×5 matrix keyboard module with 20 push buttons, including 16 black buttons and 4 red buttons, plus 8 red LEDs. Operates from 3.2 to 5 V and is ideal for electronics, Arduino, microcontroller and prototyping projects.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

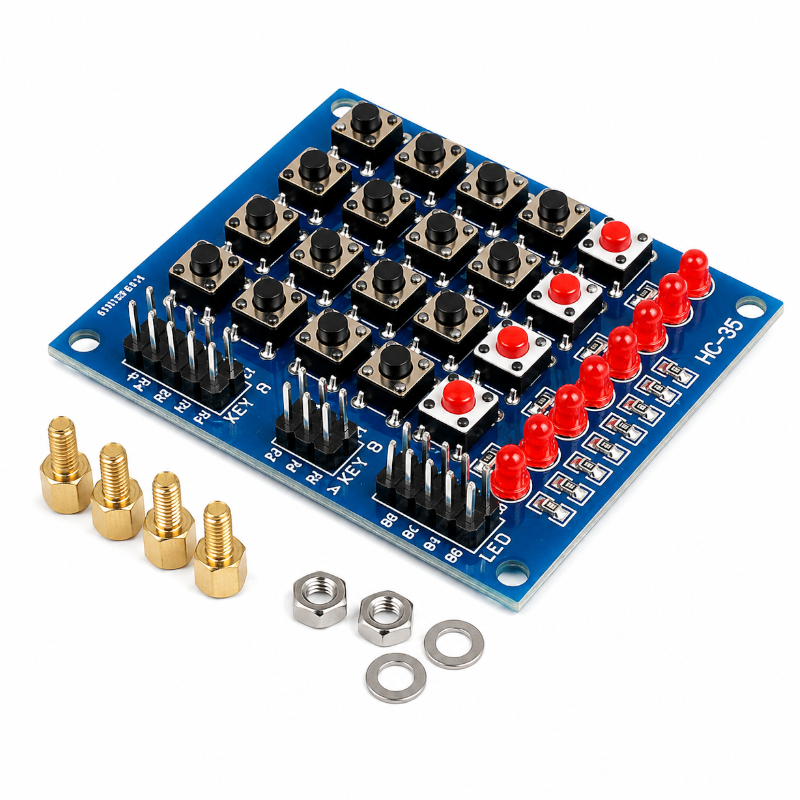

4×5 matrix keyboard module with 20 push buttons, including 16 black buttons and 4 red buttons, all integrated into the same matrix.

The module also features 8 red LEDs for visual indication.

It operates from a 3.2 to 5 V power supply and uses 2.54 mm pitch connections, making it easy to integrate into electronic and prototyping projects.



Features:

Model HC-35
Type Matrix keyboard
Configuration 4×5
Number of buttons 20
Black buttons 16
Red buttons 4
LEDs 8 red LEDs
Power supply 3.2–5 V
Dimensions 61 × 51 × 12 mm
Mounting hole spacing 55 × 45 mm
Connector pitch 2.54 mm
Button type Push button



LCD02018
