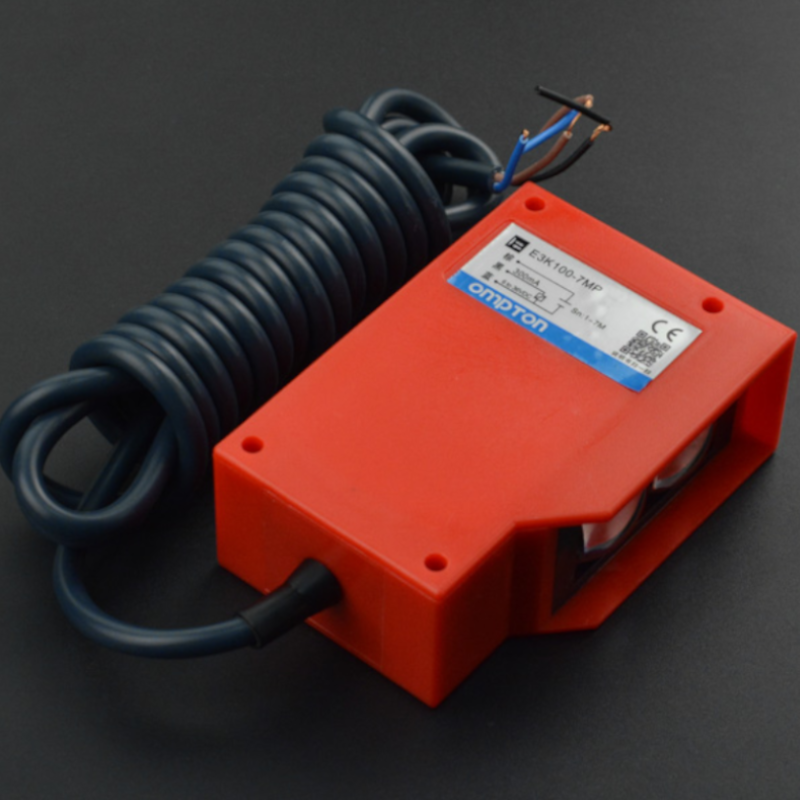

Waterproof Diffuse Reflection Photoelectric Switch 6-36V (0-7m) - DFRobot SEN0455

:SEN03064
€14.90
Tax included

This diffuse reflection infrared photoelectric switch can detect any opaque object within 0-7m( The real detection distance can be greater than 7m in our test)

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

This diffuse reflection infrared photoelectric switch can detect any opaque object within 0-7m( The real detection distance can be greater than 7m in our test). With a 6-36V power supply, the sensor has a signal indicator for real-time status feedback, and a button for adjusting detection distance(Clockwise to increase, counterclockwise to reduce). It is also waterproof and features polarity protection, and short circuit protection, which can be used in automatic car washing device, security detection, automatic access control lever lifting, intelligent induction furniture.

Diffuse Reflection Photoelectric Switch

Specification:

  1. Power Supply Voltage: 6-36V

  2. Detection Distance: 0-700cm

  3. Response Time: 2.5ms (1second=1000ms)

  4. Detection Object: any opaque object

  5. Output Form: switching value

  6. Output Current: Max300mA

  7. Waterproof Rating: IP67

  8. Protection Level: IP54

  9. Shell Material: ABS plastic

  10. Protection Function: polarity protection, short circuit protection

  11. Power Cord Length: 2m

  12. Standard Detection Object: 5*5 white matt paper

  13. Size: 69*100*37mm/2.72*3.94*1.46



Shipping List

  1. Diffuse Reflection Photoelectric Switch (0-7m) x1

  2. Screwdriver x1
