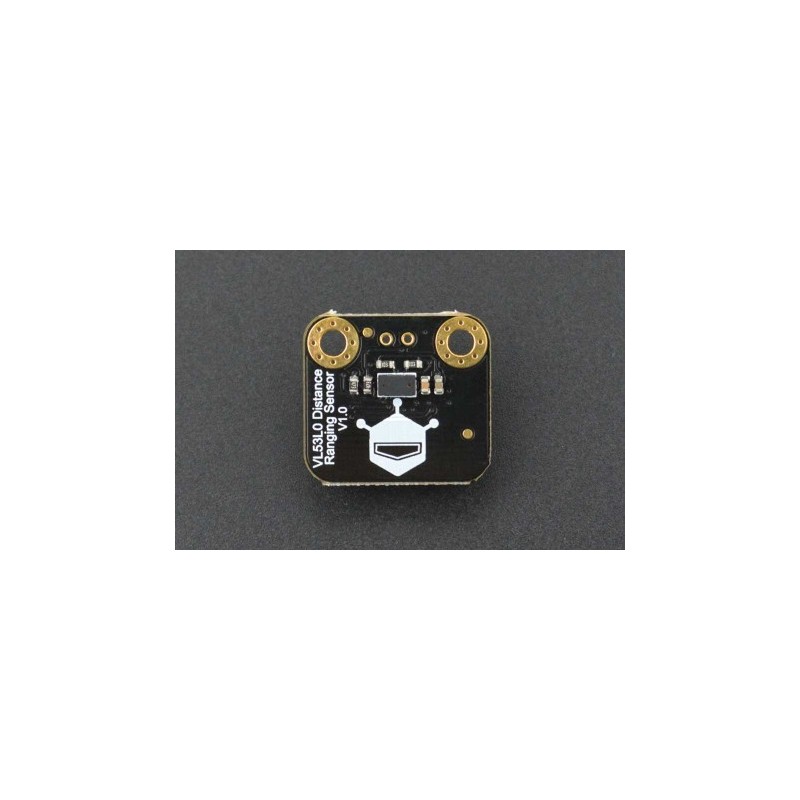

Gravity: VL53L0X ToF Laser Range Finder

:SEN03032
€13.90
Tax included

The VL53L0X is a new generation Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectances unlike conventional technologies. It can measure absolute distances up to 2m, setting a new benchmark in ranging performance levels, opening the door to various new applications.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

DFRobot has introduced VL53L0X into Gravity Series. It provides Gravity-I2C interface, plug and play, supports 3.3V~5V power supply, and is compatible with more microcontrollers, and adapt to more application scenarios than others.
The VL53L0X integrates a leading-edge SPAD array (Single Photon Avalanche Diodes) and embeds ST’s second generation FlightSenseTM patented technology. Its accuracy is ±3%, response time is less than 30ms, power consumption is only 20mW in normal operation mode, stand-by power consumption is 5uA.
The VL53L0X's 940nm VCSEL emitter (vertical cavity surface emitting laser) is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distance, higher immunity to ambient light and better robustness to cover-glass optical cross-talk.



SPECIFICATION

  • Power supply: 3.3-5V DC
  • Operating Voltage: 2.8V
  • Infrared emitter: 940nm
  • Range: 30-2000mm
  • FOV: 25°
  • Ranging Accuracy: ±3%
  • Sampling Time: <= 30ms
  • Operating Temperature: -20-70 °C
  • Interface Type: Gravity-I2C
  • Product Size: 20*22 mm/0.787*0.866 inches



DOCUMENTS

Product wiki
More Documents



SHIPPING LIST

  • Gravit: VL53L0X ToF Range Finder x1
  • Gravity I2C/UART Sensor Cable (30cm) x1
