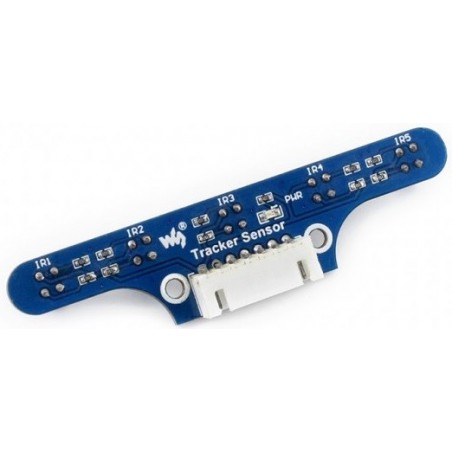

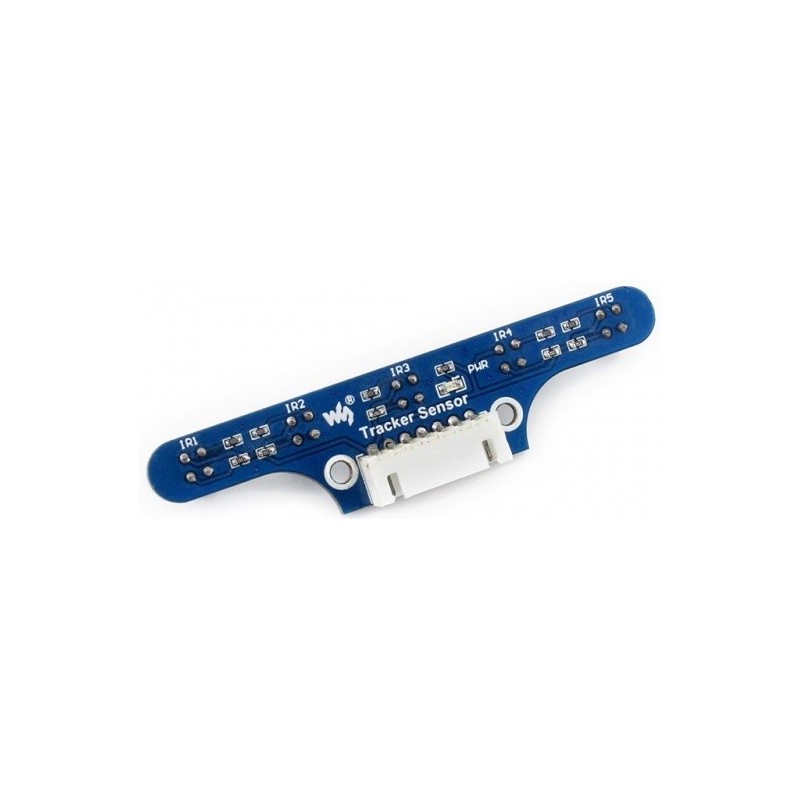

Tracker Sensor, Infrared Line Tracking w/ cable

:SEN03024
€5.28

This sensor is often used in line following robots. Includes cable with female jumper

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

  • 5-ch ITR20001/T infrared detector, high sensitivity, anti-jamming, stable performance
  • High precision analog output, combined with PID control algorithm, allows the robot tracks lines more stable
  • Kit includes cable to conect sensor (white JST conector) to a single female jumper

Specifications

  • Power: 3.3V ~ 5V
  • Dimension: 78mm × 18mm
  • Detector spacing: 16mm
  • Mounting holes size: 3mm
  • Detection range: 1cm ~ 5cm

Applications

  • Robot line tracking

How to Use

In the case of working with a MCU:

  • VCC ↔ 3.3V ~ 5V
  • GND ↔ GND
  • IR1 ↔ MCU.IO (ch1, analog output)
  • IR2 ↔ MCU.IO (ch2, analog output)
  • IR3 ↔ MCU.IO (ch3, analog output)
  • IR4 ↔ MCU.IO (ch4, analog output)
  • IR5 ↔ MCU.IO (ch5, analog output)

Dimensions

Tracker Sensor dimensions

Development Resources

Wiki



Package Content

Weight: 0.007 kg

  1. Tracker Sensor x 1
  2. XH2.54 7PIN wire x 1
SEN03024
