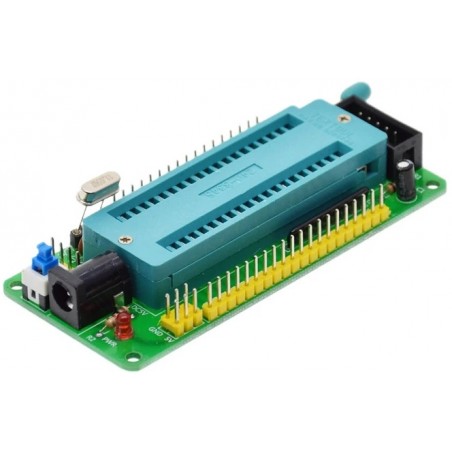

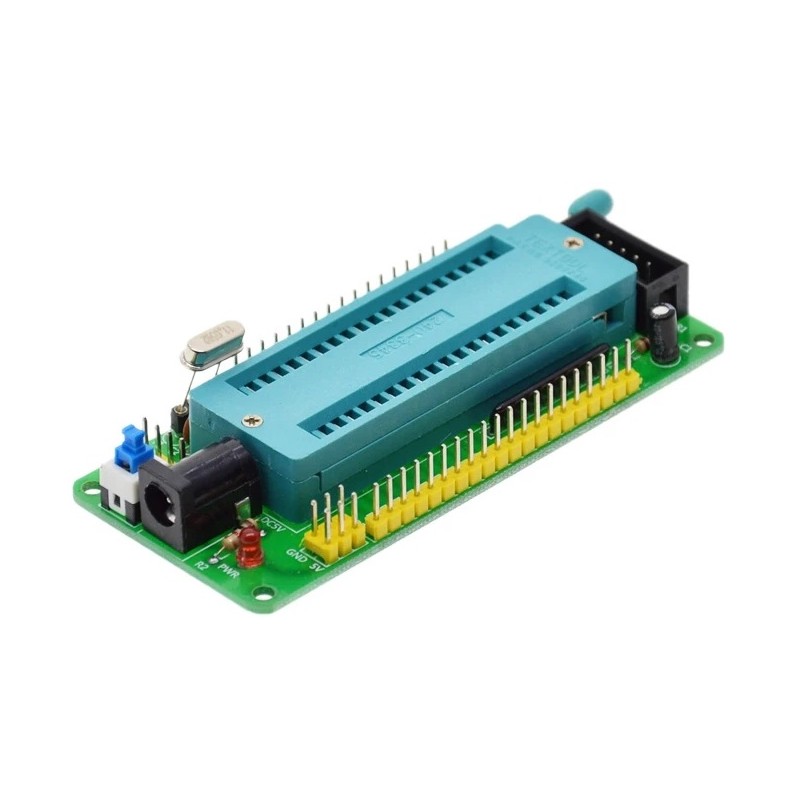

AVR 51 MCU microcontroller DIP socket for programmer

: CEL04020
€5.50
Tax included
  • Integrated ISP 10P download interface, easy to download AT89S52 microcontroller.
  • Round hole socket for easy replacement of the crystal (default 11.0592M)
  • Support chip: STC89C52 STC12C5A60S2 STC11 / 10x series AT89S52 and the chip pin-compatible chip
Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

  • DIP socket for all leads to the classic 51 minimum system, eliminating the need for welding
  • Integrated ISP 10P download interface, easy to download AT89S52 microcontroller.
  • Round hole socket for easy replacement of the crystal (default 11.0592M)
  • Support chip: STC89C52 STC12C5A60S2 STC11 / 10x series AT89S52 and the chip pin-compatible chip
  • Power switch for easy experiment.
  • Power input 2 ways: DC-005 power socket (supporting 5.5 x 2.1mm jack) and single-row pin (power switch next to)
  • External expansion of 3-way VCC, GND, as shown in the figure pin.
  • Port 0 pull-up resistor.
  • Reset mode: Power-on reset and external key reset.
  • Using green IC lock seat, easy to replace the chip.
  • Board size: 41 x 89 mm



Schematics

CEL04020
