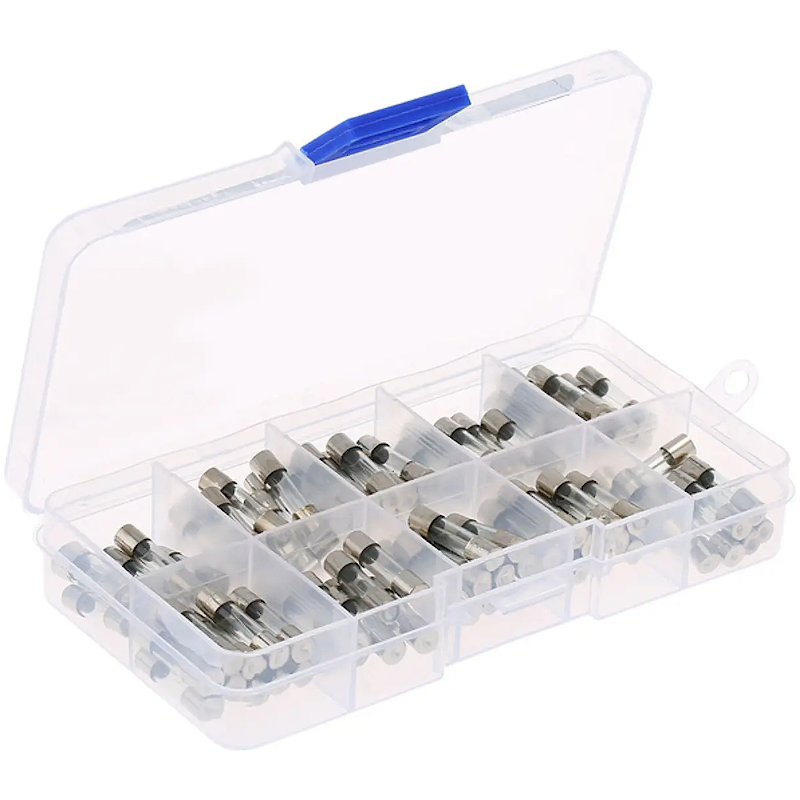

FUSE SET 100 pcs, 5 x 20 mm SLOW - K/FU

: CEL01054
€7.50
Tax included

Set of 5x20 mm encapsulated slow-blow glass fuses, containing 100 units in 10 different ratings (0.1 A, 0.2 A, 0.5 A, 1 A, 1.6 A, 2 A, 2.5 A, 3 A, 4 A, and 5 A). Features include slow-blow action, a rated voltage of 250 VAC, and a breaking capacity of up to 35 A. Packaged in a plastic box with 10 compartments; glass construction with silver caps.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Features:

  1. Slow-blow (time-delay) fuses

  2. Low breaking capacity

  3. 100 units:

    1. 10x 0.1A

    2. 10x 0.2A

    3. 10x 0.5A

    4. 10x 1A

    5. 10x 1.6A

    6. 10x 2A

    7. 10x 2.5A

    8. 10x 3A

    9. 10x 4A

    10. 10x 5A



Test specifications:

  1. Opening time: 1.5 In: t>1H / 2.1 In: max. 2 min. / 2.75 In: 600mS< t <10S / 4 In: 150mS< t <3S / 10 In: max. 300mS

  2. Packaging: plastic box with 10 compartments

  3. Construction: glass cartridge, silver-plated caps

  4. Specifications: IEC127, BS4265 and CEE4

  5. Voltage: 250VAC

  6. Breaking capacity: 35A

  7. Endurance: cycle test as specified by IEC127 and BS4265

  8. Ambient temperature: 15..35°C as per IEC/BS, up to 70°C

CEL01054
