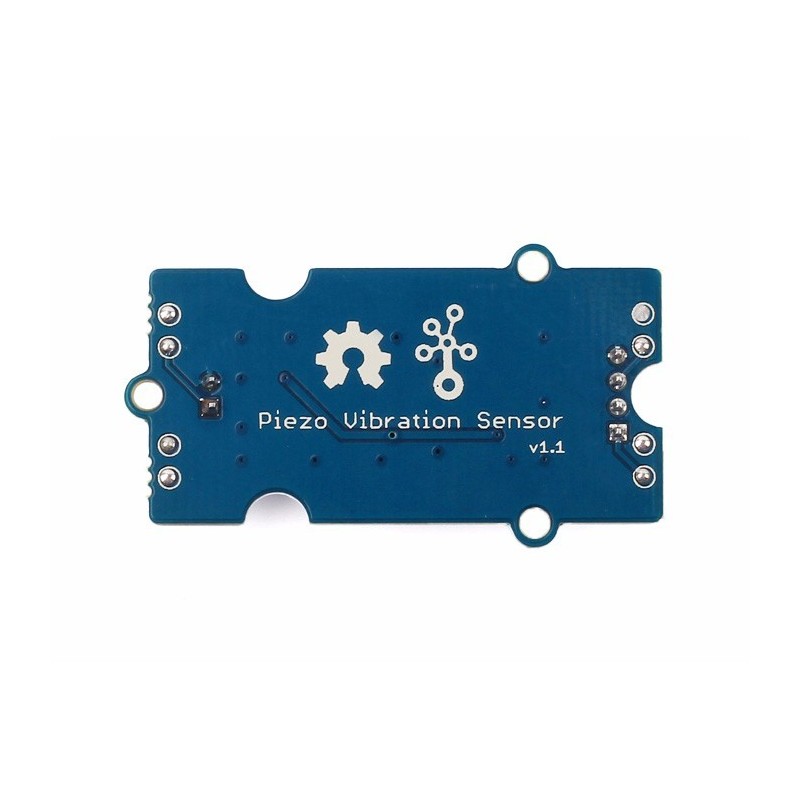

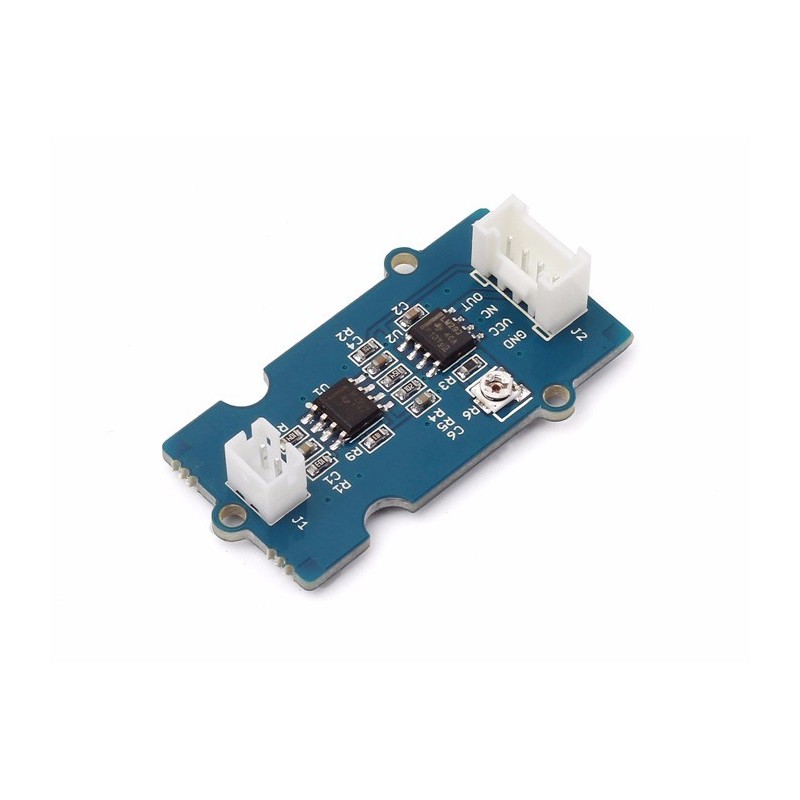

Grove - Piezo Vibration Sensor

:SEN15009
€5.65
Tax included
Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Description

Grove- Piezo Vibration Sensor is suitable for measurements of flexibility, vibration, impact and touch. The module is based on PZT film sensor LDT0-028. When the sensor moves back and forth, a certain voltage will be created by the voltage comparator inside of it.



Therefore, outputs high & low levels. In spite of the fact that it has a high receptivity for strong impacts, a wide dynamic range (0.001Hz~1000MHz) also guarantees an excellent measuring performance. Finally, you can adjust its sensitivity by adjusting the potentiometer with a screw.



Features

  • Standard grove socket

  • Wide dynamic range:0.001Hz~1000MHz

  • Adjustable sensitivity

  • High receptivity for strong impact



Applications

  • Vibration Sensing in Washing Machine

  • Low Power Wakeup Switch

  • Low Cost Vibration Sensing

  • Car Alarms

  • Body Movement

  • Security Systems

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.



Technical Details

Dimensions 40mm x 20mm x 11.5mm
Weight G.W 10g
Battery Exclude
SEN15009
