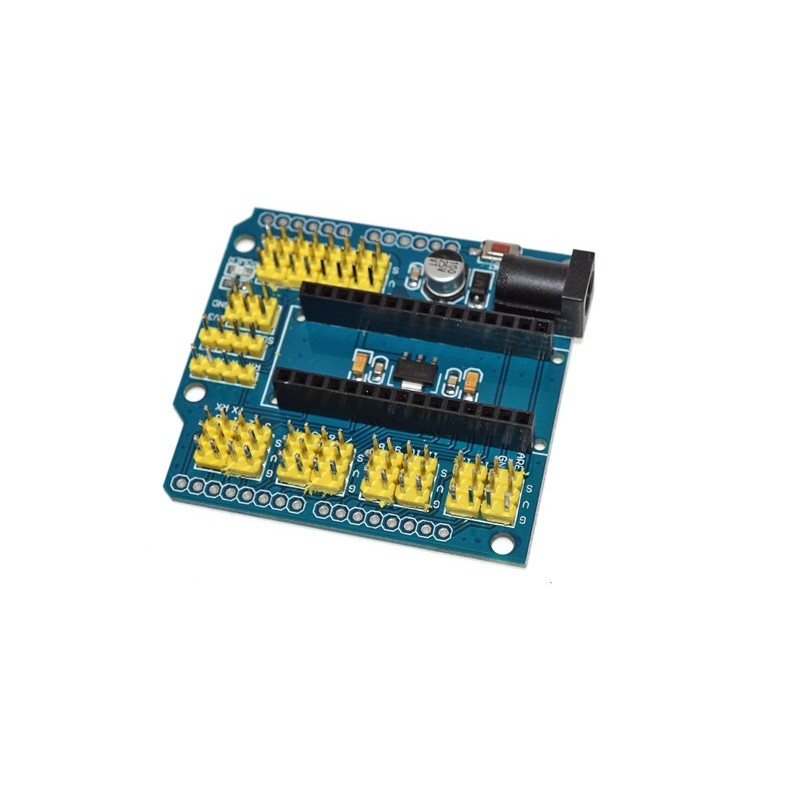

Arduino Nano Expansion Board with UNO pinout
: ARD03162
€5.57
Nano IO Expansion Shield is specifically designed to facilitate an easy connection between Nano and many other devices
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
In essence, it expands the Nano controller to link those devices in a simple and trouble free manner. It is a perfect companion of Nano breadboard and compatible with both Nano v2.x and v3.x.
- 14 I/O Pin (servo type with GND, power and signal)
- 8 analog Pin with power output and GND
- 6 PWM Pin
- 1 Servo power input
- 5 I2C expansion Pin
- AREF output
- 3.3V output
