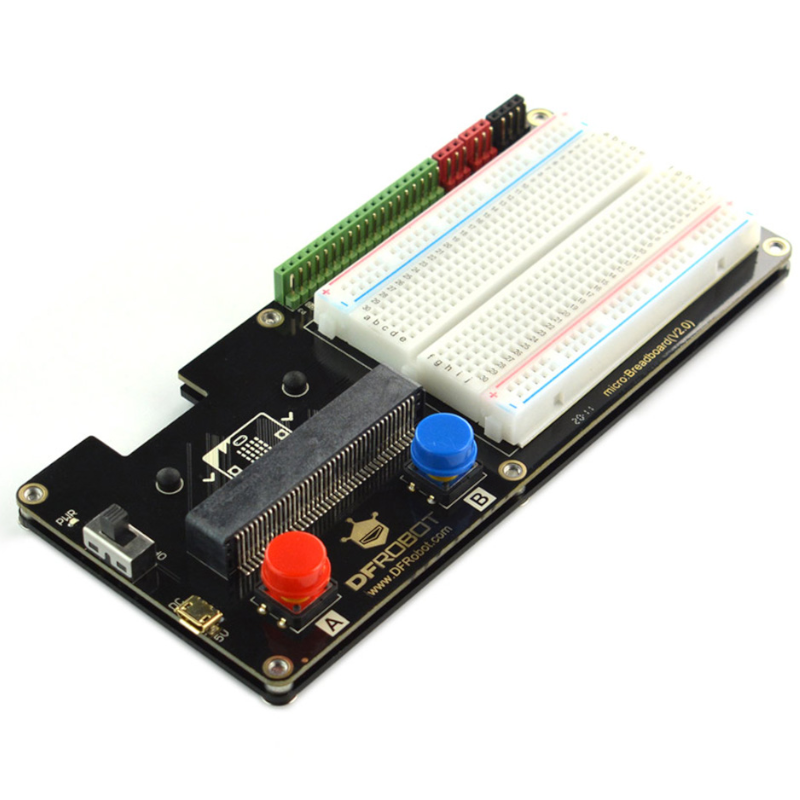

Micro:bit Breadboard expansion module - DFRobot MBT0009

: PCO07151
€16.50
Tax included

This micro:bit expansion board simplifies circuit building with a plug-and-play design, supporting visual programming and reusable components, ideal for STEM projects.

If you want to know more about this product, please check its Wiki Page

Note: Micro:bit board is not included.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

Micro: breadboard is a micro:bit-based expansion board specially designed for STEM-starter. It comes with a 3.23*2.17” breadboard (independent packing, you need to stick them together), on which you can directly build circuit with all sorts of electronic components.

All IO ports are led out in the form of pin header and female header, no welding required, plug and play. The electronic parts can be used repeatedly, which greatly reduces the circuit building time. The board has on-board AB buttons, PWR indicator, and independent power switch, more ways to play, meanwhile, much easier to use.

This micro: breadboard is especially suitable for building and debugging circuits. It also can be applied to the micro:bit-based applications like, light control lamp, smart doorbell, temperature alarm, etc.



Board Overview

Features

  1. Free from soldering, electronic components can be used repeatedly

  2. IO ports are led out in the form of pin header and female header, easy to use;

  3. Support visual programming, mind+ and python

  4. Micro USB 5V power interface



Specification

  1. Operating Voltage: 3.3~5V

  2. Digital Output Voltage: 0V/3.3V

  3. Analog Output Voltage: 0~3.3V DC

  4. Pin Header and Female Header Connector

  5. micro:bit Interface ×19  (P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P19 P20)

  6. Power Interface ×4

  7. GND Port ×4

  8. 3.23 * 2.17” Breadboard (middle size) ×1

  9. PWR Indicator ×1

  10. On-board Button(A/B) ×2

  11. Dimension: 16.2cm×7.2cm/6.38×2.83"

  12. Mounting Hole Size: M3 Screw hole



Shipping List

  1. Micro:bit Breadboard x1

  2. Middle Size Breadboard x1
