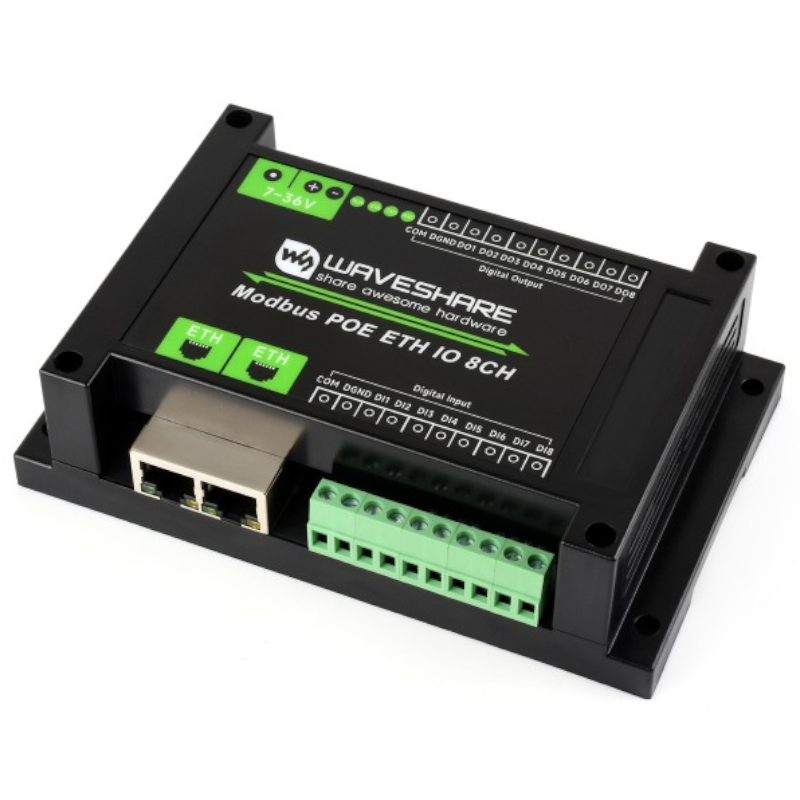

Industrial Converter 8-Ch Ethernet IO Module to Modbus RTU / TCP Protocol with 2 PoE ports - Waveshare 33917

The Modbus POE ETH IO 8CH is an industrial 8DI / 8DO isolated digital input / output module with dual Ethernet interfaces control, it supports passive and active digital input. Adopts Modbus RTU / Modbus TCP protocols with built-in protection circuits such as power isolation, optocoupler isolation, resettable fuse, and TVS.

1. Onboard voltage regulator chip, supports 7V ~ 36V wide range power supply and PoE power supply

2. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal

3. Supports passive and active digital input, with bi-directional optocoupler isolation, built in debouncing algorithm. The relay supports digital input linkage control or toggle control

4. The output utilizes Darlington transistor with optocoupler isolation for stronger driving capability, up to 500mA sink current, and built-in flyback diode protection

5. Features flash-on and flash-off functions, by passing arguments to the command, it is possible to turn on the output for a while and then turn it off automatically

6. Rail-mount case design, easy to install, safe to use

7. Onboard LEDs for indicating the input / output status, MCU status, and signal transceiving status

Primary function

Supports reading digital input by sending Modbus RTU/TCP protocol commands via Ethernet for digital output control

Supports Multiple Communication Modes, Adopts Modbus Protocol

Supports TCP server, TCP client, UDP mode, UDP multicast, HTTP, MQTT and supports Modbus RTU and Modbus TCP protocols

Multi Configuration Methods

Supports software and Web Browser Configuration, Obtaining Dynamic IP Via DHCP, connecting to domain name server via DNS protocol

Multi Power Supply Options, Wide Range Power Input

DC Power port: directly uses a power plug for power supply, Screw terminal: DC 7V ~ 36V wide range power input, PoE port: IEEE 802.3af PoE compliant

Fully isolated digital input / output

Supports passive and active digital input (PNP or NPN), with power isolation and bi-directional optocoupler isolation. Adopts Darlington transistor open-drain output, up to 500mA sinking current per channel for directly driving relays

Interfaces & Indicators

With Multiple LED Indicators, Easy To Monitor The Operating Status

Multiple modes for various automation scenarios

Supports multiple relay control modes, each channel supports independent control mode setting

Support Ethernet Port Cascade and PoE cascade power supply

Onboard 2-ch Ethernet Ports for communication and cascade. Either one can be used for dual serial server network communication, while the other one can be used for cascading or communication with other devices

Rail-mount case design

Rail-mount PC protective case, easy to install, safe to use

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/Modbus_POE_ETH_IO_8CH

Weight: 0.212 kg

1. Modbus POE ETH IO 8CH x1

2. Screwdriver x1
