ENC28J60 Ethernet Network Module 59x35mm

: COM02023
€7.72
Quantity

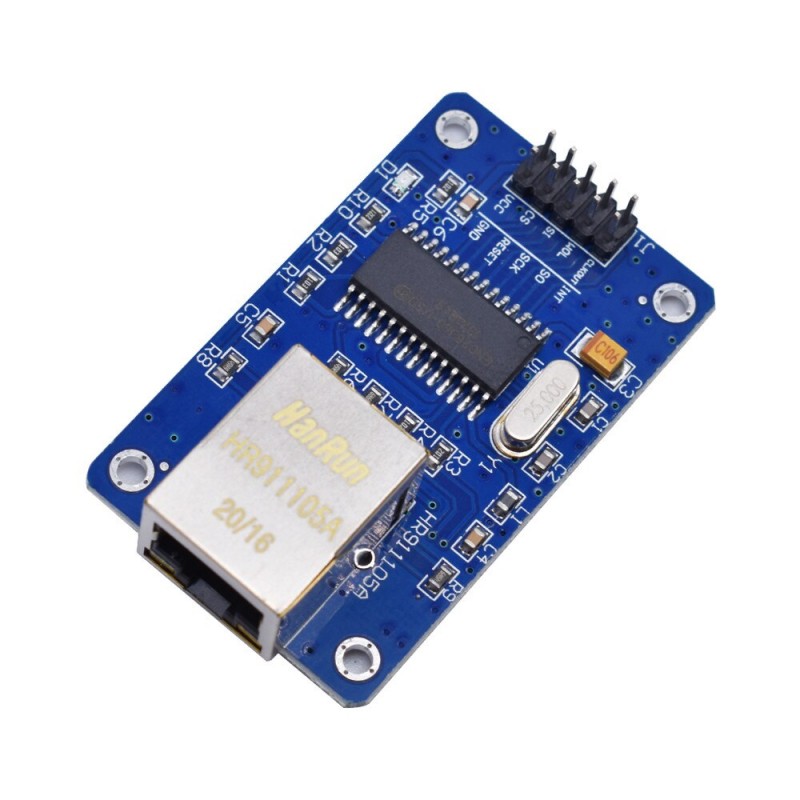

It's a small breakout board for the ENC28J60 Ethernet chip. Contains all the necessary hardware to implement an Ethernet interface including the isolation transformer and LINK/STATUS and power LEDs. SPI interface makes this one of the easiest 10Base-T ICs yet. It's 3.3V with 8KB buffer.



Features

  • Dimension: 59x35mm
  • ENC28J60/SS Chip
  • 25MHz crystal
  • SPI Interface
  • Input voltage :+3.3V
  • Built-in isolation transformer RJ45 connectors HR911105A
  • All signals taken out to headers for further connection



COM02023
