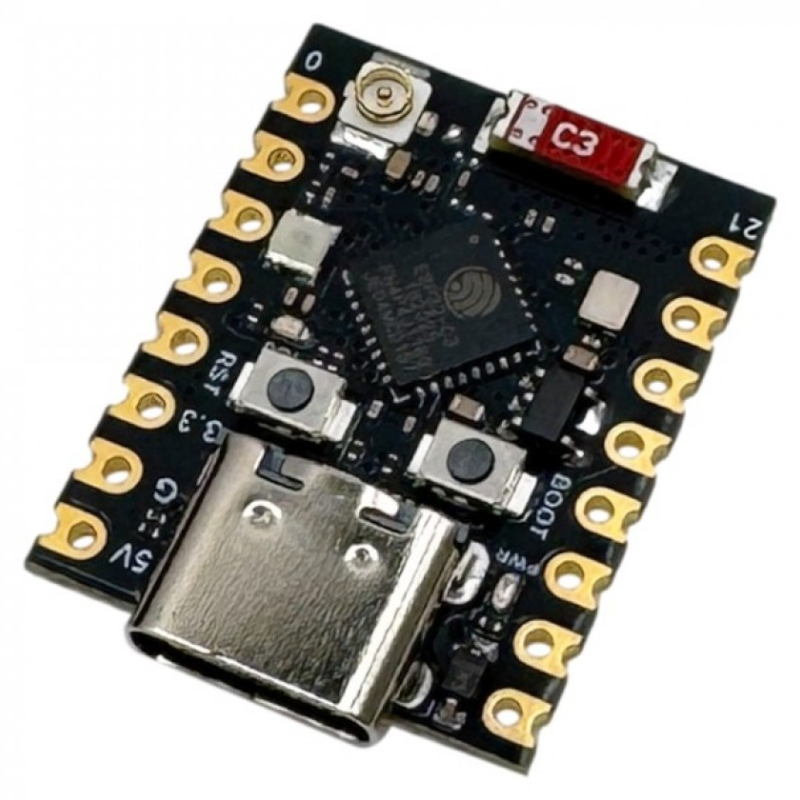

A development board from Nologo based on a ESP32-C3 microcontroller by Espressif. Thanks to the built-in USB connector, it is easy to program. For extra connectivity, the board has multiple wireless communication interfaces (including Wi-Fi/Bluetooth).
See the following page for more information: Wiki
If you have any questions on this product please feel free to contact us.
*Disclaimer: The images are merely illustrative.
The following picture shows the pinout for the ESP32-C3 Super Mini board. Please note that the pinout can change slightly depending on the manufacturer. So, double-check the pinout with the pin mapping on the silkscreen of your board.
| General | |
| Brand | Nologo |
| Features | Digital LED(s) Microcontroller (MCU) Programmable button(s) |
| General physical appearance | |
| Main color | Black |
| Weight [g] | 2 |
| Dimension X [mm] | 23 |
| Dimension Y [mm] | 18 |
| Mounting options | SMT |
| Form factor | Module (general) |
| General electrical properties | |
| Minimum supply voltage [V DC] | 3.3 |
| Maximum supply voltage [V DC] | 6 |
| Minimum IO-pin input voltage [V] | 3.3 |
| Maximum IO-pin input voltage [V] | 3.3 |
| IO-pin output voltage [V] | 3.3 |
| Maximum IO-pin source current [mA] | 40 |
| Maximum IO-pin sink current [mA] | 28 |
| MCU | |
| Manufacturer | Espressif |
| Chip series | ESP32-C3 |
| Maximum clock frequency [MHz] | 160 |
| Number of cores | 1 |
| Internal memory | |
| SRAM [KB] | 400 |
| PSRAM [MB] | 0 |
| Flash memory [MB] | 4 |
| EEPROM type | Emulated |
| Communication | |
| Hardware interface(s) | ADC I2C I2S PWM SPI GPIO UART USB CDC |
| Available GPIO pins | 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 18, 19, 20, 21 |
| Number of IO-pins | 15 |
| Maximum available hardware PWM channels | 6 |
| Maximum available analog input pins (ADC) | 6 |
| Maximum available analog output pins (DAC) | 0 |
| Maximum available hardware UART interfaces | 2 |
| Maximum available hardware I2C interfaces | 1 |
| Maximum available hardware SPI interfaces | 1 |
| USB to serial converter | Integrated into microcontroller |
| Wireless communication | |
| Interface(s) | Wi-Fi Bluetooth |
| Wi-Fi chip/SoC | ESP32-C3 |
| Wi-Fi frequency [GHz] | 2.4 |
| Bluetooth chip/SoC | ESP32-C3 |
| Bluetooth version | 5.0 |
| Supported Bluetooth standard(s) | LE |
| Light source | |
| Type | LED |
| LED (driver) chip | WS2812B |
| Light color | RGB |
| Connectors | |
| Power supply connector(s) | USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| IO-connector(s) | USB-C female Solder pin(s) (SMT) Through hole solder pin(s) (2.54mm) |
| Wi-Fi/Bluetooth antenna connector | Built-in antenna IPEX MHF 1/uFL male (requires modification) |
| Package contents | |
| Package contents | 1x Development board 2x Headers |
