T-HMI: ESP32-S3 HMI with resistive touch 2.8inch ST7789V IPS 240x320 TFT LCD - LILYGO® H605

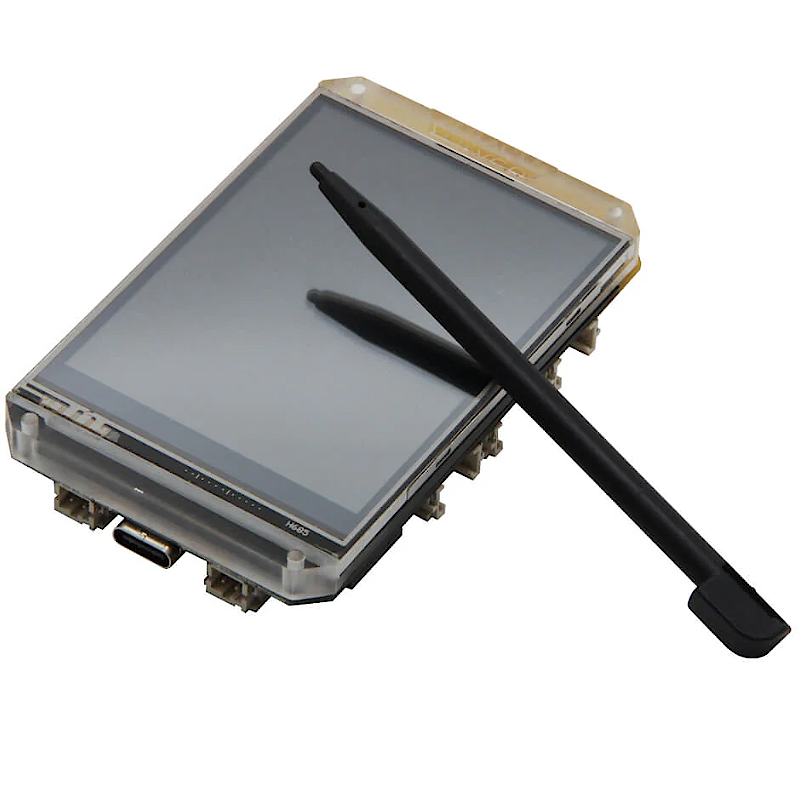

T-HMI is a touch display screen equipped with ESP32-S3 chip. The screen uses a 2.8-inch ST7789 LCD and is equipped with a resistive screen stylus/pen. It has 16MB onboard Flash and 8MB PSram. It can be powered via the USB-C interface, 5V DC seat or battery connector.


T-HMI Features

In addition to the aforementioned features, 3 side connections expose GPIOs 15 and 16, 17 and 18, 43 and 44. Perfect for connecting actuator peripherals. In the power input we have 3 options, being USB-C, input for a 2-pin 5VDC power connector and the same connector for the battery. It has a connector for an external antenna, to improve the quality of the WiFi signal. At the top there are 3 buttons (in addition to the SD card), one for boot mode, one for reset and one for general use, configured with the standard firmware to switch screens.


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



Pin Diagram
