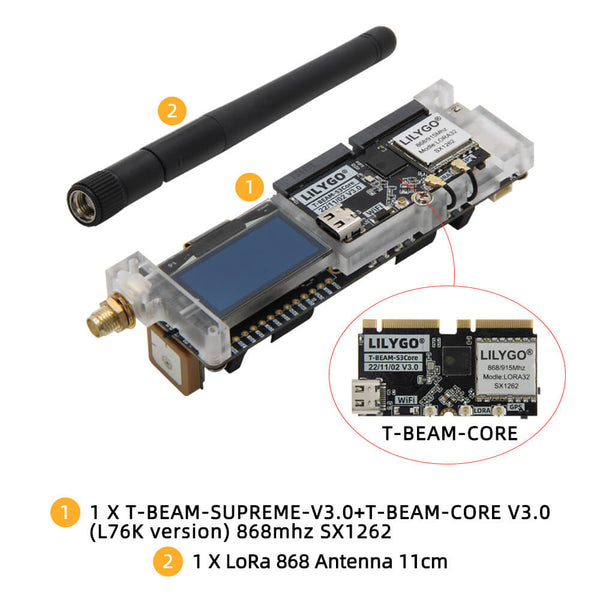

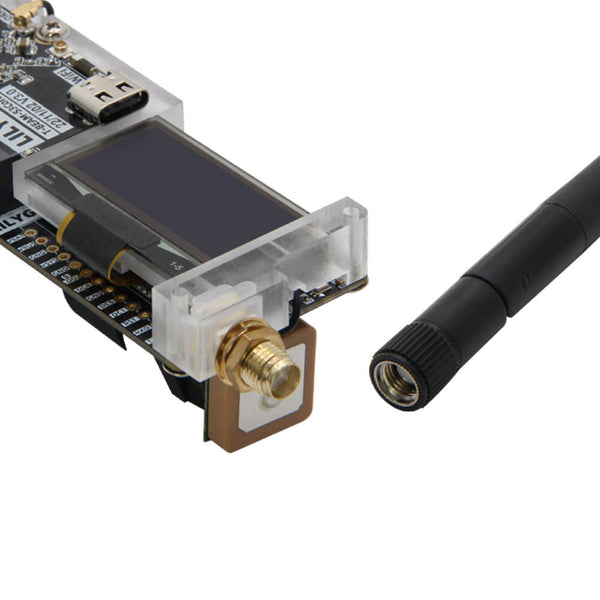

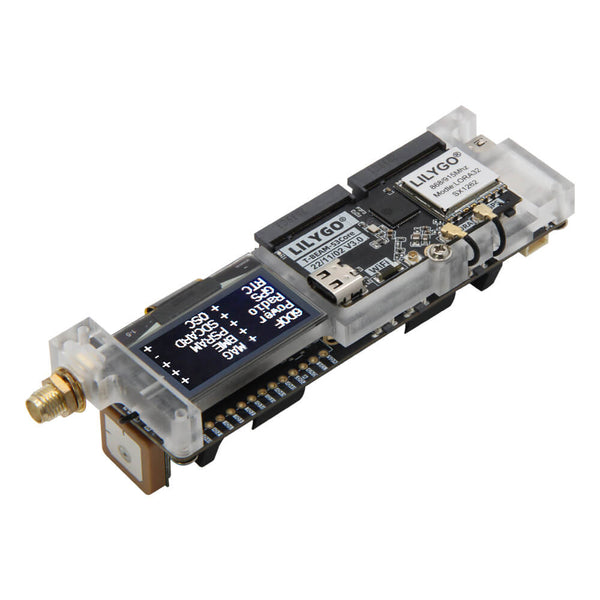

T-BeamSUPREME Meshtastic ESP32-S3 LoRa SX1262 868MHz w/ GPS L76K, OLED and 18650 Battery Holder - LILYGO® H661(M)

: PCO05139
€76.90
Tax included
  • T-BeamSUPREME is a collaborative development board produced by LILYGO and Meshtastic.

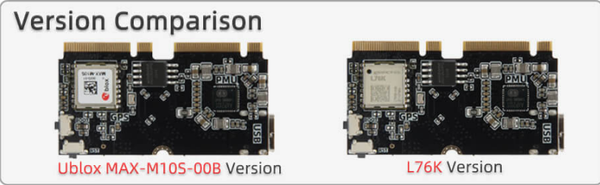

  • The CORE is composed of ESP32-S3, LoRa SX1262, and GPS (with L76K chip).

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



More info and updated documentation on LilyGo product page (SUPREME L76K 868MHz [H661])



Specifications

MCU ESP32-S3FN8 Dual-core LX7 microprocessor
Wireless Connectivity 2.4 GHz Wi-Fi & Bluetooth5 (LE)
Development  Arduino, PlatformlO-IDE, Micropython
Onboard functions Boot (IO00) + Reset + Power Button
Flash 8MB
PSRAM 8MB

 Six-axis IMU QMI8658



Sample Code For Reference [Github]

If you need technical support please check the link to find more details.

T-BeamSUPREME

LILYGO LoRa series

Size

____________________________________________________________________________________________________________________

Pin Digram

____________________________________________________________________________________________________________________

____________________________________________________________________________________________________________________

More Details

____________________________________________________________________________________________________________________











PCO05139
