POE-Shield to T-ETH-Lite - LILYGO® H675

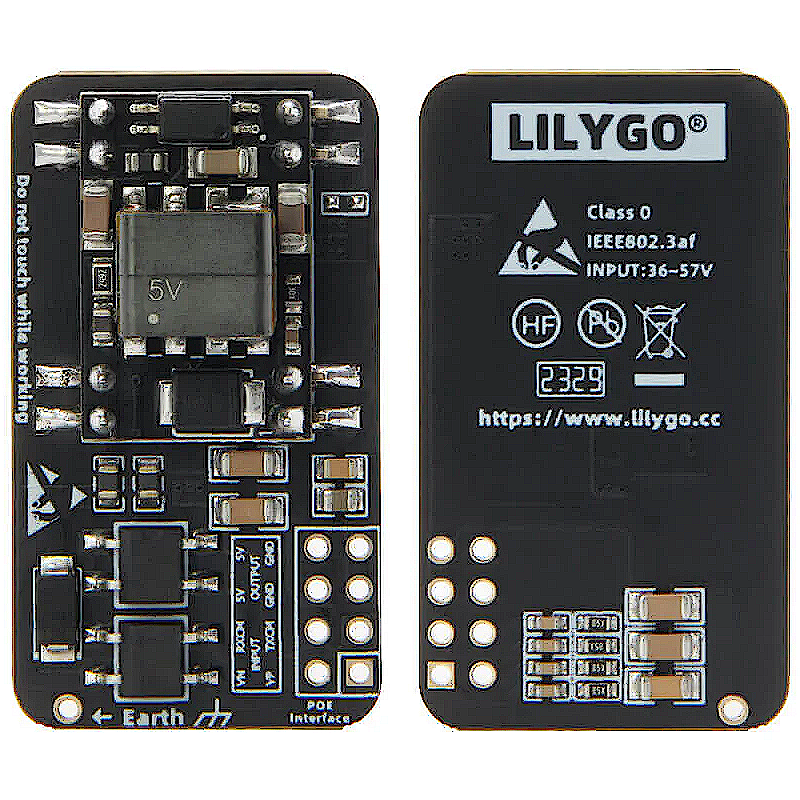

The LilyGo T-ETH-Lite POE Shield is a versatile expansion module specially designed for the ESP32 and ESP32-S3 development boards. It enables Power-over-Ethernet functionality (POE), allowing devices to be powered through an Ethernet cable. This shield is ideal for projects that require flexible and independent power supply and is great for IoT applications in areas without direct access to power sources.


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.


More info and updated documentation on LilyGo product page (POE Shield [H674])


Compatible with:

  • LilyGo T-ETH-Lite ESP32-S3 W5500 Ethernet Module

Technical specifications:

  • Manufacturer: Lilygo
  • Manufacturer SKU: H675
  • POE: IEEE802.3 af/Class 0
  • Dimensions: 40.5 x 22.8 x 17mm
  • Weight: 21g

Package includes:

  • 1x LilyGo T-ETH-Lite POE Shield
  • 1x 2x4pin socket header
