EC11 Rotary Encoder Module (Breakout)

:SEN20010
€3.70
Tax included

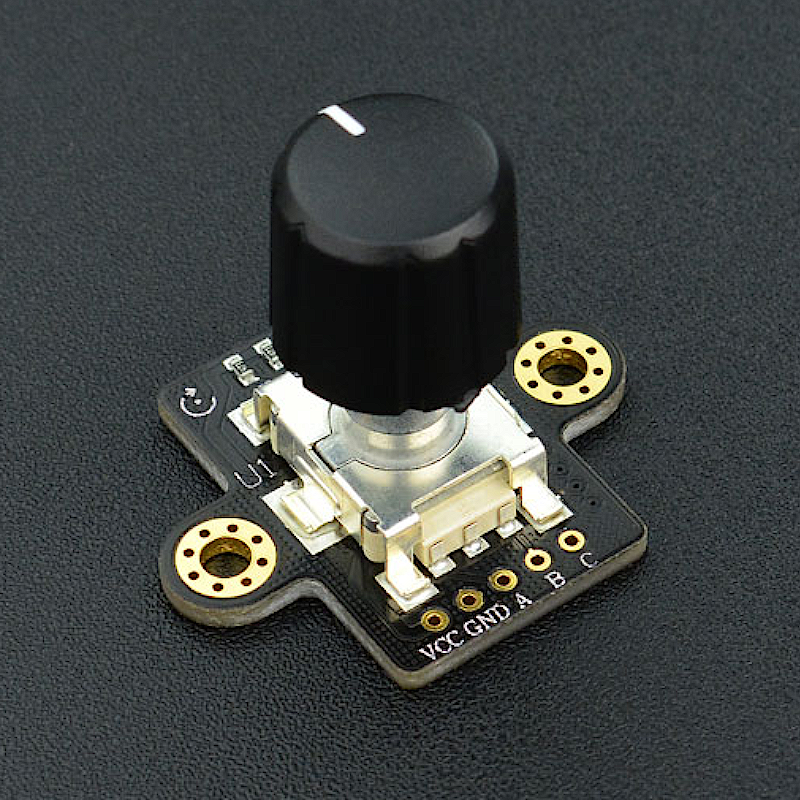

DFRobot 360 degree rotary encoder module is designed based on EC11 rotary encoder button. This module has three signal terminals: terminal A & B is encoder output; terminal C is button signal output.

If you want to know more about this product, please check the WikiPage.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Introduction

The DFRobot 360 degree rotary encoder module is based and designed on the EC11 rotary encoder button. The module has three signal terminals: terminals A & B are encoder output; terminal C is the button signal output. It is quite suitable for applications such as a volume knob and varying lighting voltage. The rotary encoder module comes with XH2.54 bonding pad, easy to use in prototyping projects such as automotive electronics, multimedia speakers, instrumentation, smart home and other fields.



Specification

  1. Operating Voltage: 3.3V ~ 5V

  2. Full Rotation Angle: 360 degrees (no stop point)

  3. Number of pulse: 20

  4. Rotation Life: 30000 ± 200 Cycles

  5. Contact Resistance: ≤ 100mΩ

  6. Insulation Resistance: 100MΩ or more

  7. Oscillation: <10ms Press

  8. Working Temperature: -30 ℃ ~ +80 ℃

  9. Module Size: 33.8 * 22.4 (mm) /1.3 * 1.1 (inches)

  10. Weight: 14g



Documents

Product WIKI



Shipping List

  1. EC11 Rotary Encoder Module x1

  2. XH2.54-5pin header x1

SEN20010
