Wheel Encoders

Introduction

This encoders are designed for Micro DC Geared Motor. It can give you the rotation degree of the wheels. Encoder uses non-contact method to convert the angular displacement signals.

It includes encoders, plastic tube, paper-mediated gasket etc.

Specification

• Voltage:+5V
• Current:<20mA
• Resolution:20 PPR
• Weight:20g

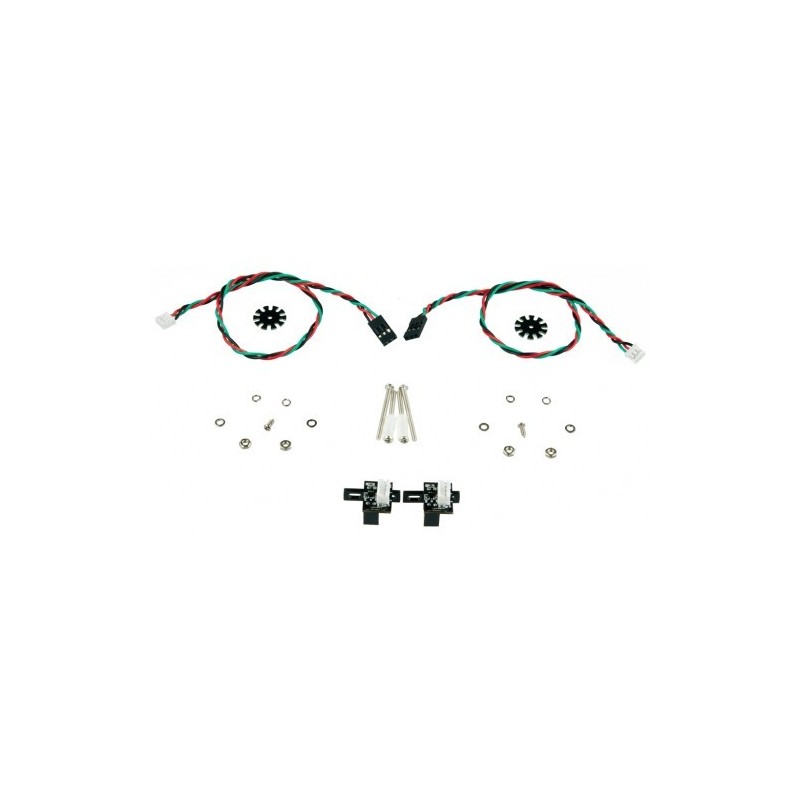

Shipping list

• M3*5 screws (2 units)
• M3*50 screws (4 units)
• rubber ring (4 units)
• washer (4 units)
• plastic cover(4 units)
• grating disk (2 units)
• motor (2 units)
• digital cable (1 unit)

Documents:

• Arduino Sample code
• Wiki
