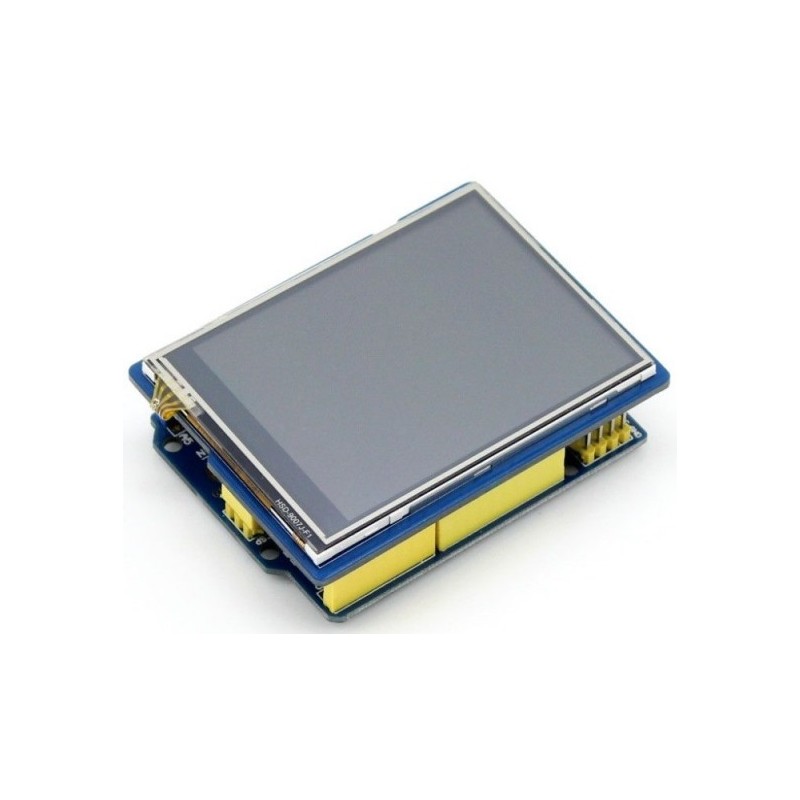

2.8inch Arduino Touch LCD Shield
DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL
Se tiver alguma dúvida neste produto não hesite em contactar-nos.
*Atenção: as imagens são meramente ilustrativas.
Features
- Resistive touch screen TFT LCD, 2.8 inch, 320×240 resolution
- Standard Arduino interface, compatible with development boards like : Arduino UNO, Leonardo, UNO PLUS, NUCLEO, XNUCLEO
- Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control
- Micro SD slot, provides an easy way to store photos for displaying
- Controlled via SPI, only a few Arduino pins are used
- Backlight adjustable by program, lower power consumption
Key Parameters
LCD Type |
TFT |
---|---|
LCD Interface |
SPI |
LCD Controller |
HX8347D |
Touch Screen Type |
Resistive |
Touch Screen Controller |
XPT2046 |
Colors |
RGB, 65K colors |
Resolution |
320x240 (Pixel) |
Display Size |
57.6mm×43.2mm |
Outline Dimension |
73.3mm×55.3mm |
I/O Voltage |
3.3V/5V |
Interface
Arduino PIN |
Symbol |
Description |
---|---|---|
D3 |
TP_IRQ |
Touch panel interrupt |
D4 |
TP_CS |
Touch panel chip select |
D5 |
SD_CS |
Micro SD card chip select |
D7 |
LCD_DC |
LCD data/command selection |
D9 |
LCD_BL |
LCD backlight control |
D10 |
LCD_CS |
LCD chip select |
D11 |
MOSI |
SPI data input |
D12 |
MISO |
SPI data output |
D13 |
SCLK |
SPI clock |
External Dimension
Downloads
Development resources: demo codes, schematic, datasheets, etc.
www.waveshare.com/wiki/2.8inch_TFT_Touch_Shield
