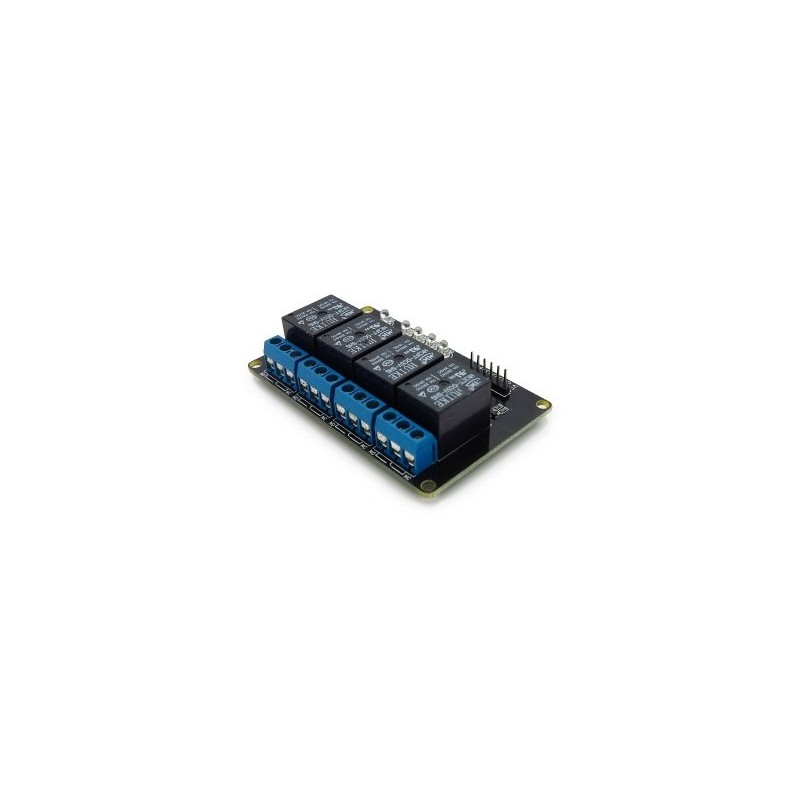

4 channels 5V relay module
  • 4 channels 5V relay module
  • 4 channels 5V relay module
  • 4 channels 5V relay module
  • 4 channels 5V relay module

4 channels 5V relay module

:MRE01012
€11.90
Tax included

This is a 5V 4-Channels Relay module, It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and MSP430

This is a 5V 4-Channels Relay module, It can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM and MSP430.

4 relays are included in this module, with “NC” ports means “Normally connected to COM” and “NO” ports means “Normally open to COM”. This module also equipped with 4 LEDS to show the status of relays.



Features

  • 4 mechanical relays with status indicator LED
  • Both “NC” and “NO” ports for each relay



Specification

Module Type Control
Weight 70.00g
Model IM120525002
Board Size 8 x 4.8 x 2cm
Version 1
Operation Level Digital 5V
Power Supply External 5V



Documents

Schematic

MRE01012
