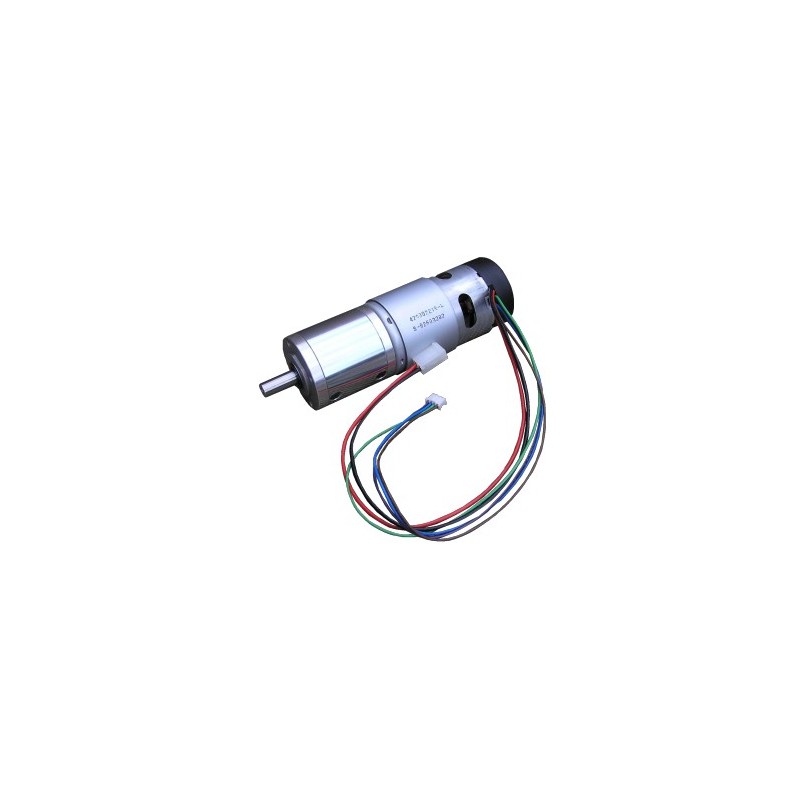

The EMG49 (encoder, motor, gearbox 49:1) is a 24v motor fully equipped with encoders and a 49:1 reduction gearbox

Quantity

The EGM49 is a 24V motor fully equipped with encoders and a 49:1 reduction gearbox. It is ideal for medium size robotic applications, providing cost effective drive and feedback for the user.



Specifications:

  • Rated voltage: 24V
  • Rated torque: 16kg/cm
  • Rated speed: 122rpm
  • Rated current: 2100mA
  • No load speed: 143
  • No load current: 500mA
  • Stall current: 13A
  • Rated output: 37.4W
  • Encoder counts per drive shaft turn: 588



More information in the product support page.





* Note: Product may not be exactly as shown in image. Contact us for more information.
