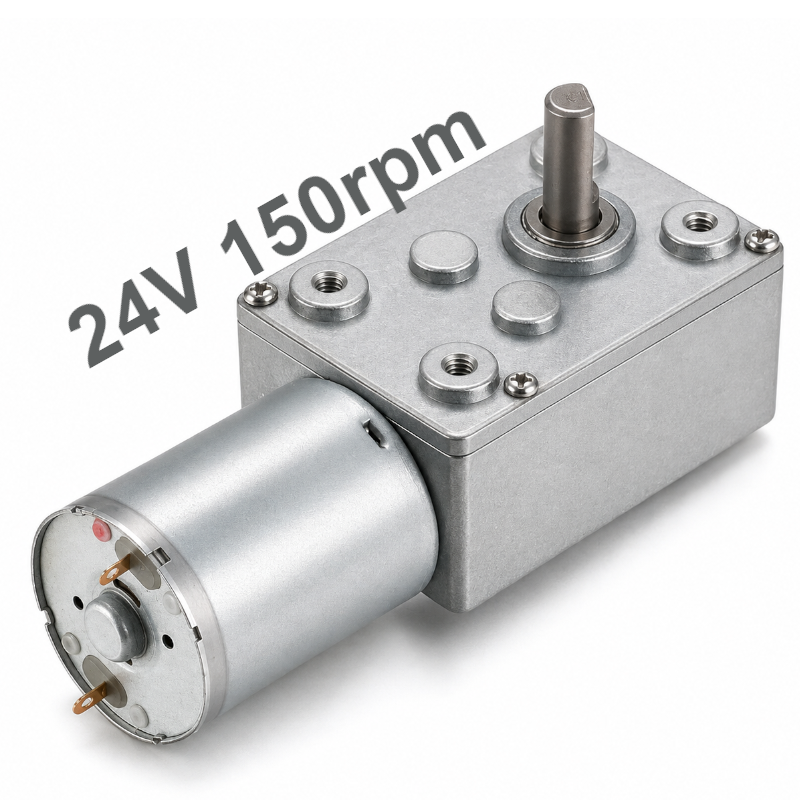

JGY370 Reversible High Torque Worm Geared 24V 150rpm

: MOT02137
€9.90
Tax included

JGY370 DC motor with worm gear reduction, 24 V and 150 RPM, featuring reversible rotation and self-locking capability. A compact solution for applications requiring controlled movement and mechanical reduction.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The JGY370 is a DC motor equipped with a Worm Gear reduction gearbox, designed to provide controlled movement and self-locking of the output shaft.

This version operates at 24 V DC and provides a 150 RPM no-load speed and approximately 120 RPM under load. The rotation direction can be reversed by reversing the power supply polarity.

The worm gear reduction system also provides self-locking of the output shaft when the motor is not powered, preventing the shaft from freely rotating.



Key Features

FeatureSpecification
Model JGY370
Type DC geared motor
Gearbox Worm Gear
Rated voltage 24 V DC
No-load speed 150 RPM
Loaded speed 120 RPM
No-load current ≤ 40 mA
Load current ≤ 0.3 A
Load torque 0.2 kg·cm
Power 3.6 W
Stall torque 0.9 kg·cm
Stall current 0.85 A
Gear ratio 40:1
Rotation Reversible
Self-locking Yes
Approx. weight 155–162 g



Reversible rotation

The rotation direction can be changed by reversing the DC power supply polarity.

An appropriate control circuit, such as an H-bridge, can be used to control the motor in both directions.

Worm gear reduction

The gearbox provides a 40:1 reduction ratio, reducing the motor speed while increasing the available output torque.

The worm gear system also provides self-locking, helping keep the output shaft in position when power is removed.
