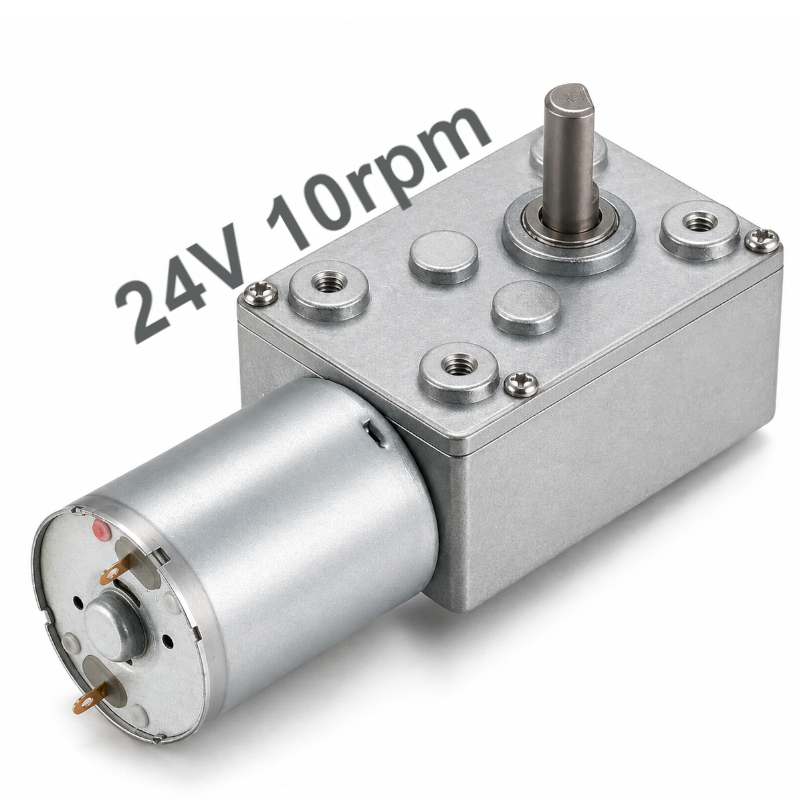

JGY370 Reversible High Torque Worm Geared 24V 10rpm

: MOT02136
€9.90
Tax included

JGY370 DC motor with worm gear reduction, 24 V and 10 RPM, featuring high torque, reversible rotation and self-locking capability. Ideal for applications requiring slow movement and position control.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



The JGY370 is a DC motor with a worm gear reduction gearbox, designed for applications requiring low rotational speed and high torque.

This version operates at 24 V DC and provides a 10 RPM no-load speed and approximately 7.5 RPM under rated conditions.

The motor provides bidirectional rotation by reversing the power supply polarity. The worm gear gearbox also provides a self-locking function, helping to maintain the output shaft position when the motor is not powered.



Key Features

FeatureSpecification
Model JGY370
Type DC geared motor
Gearbox Worm Gear
Rated voltage 24 V DC
No-load speed 10 RPM
Loaded speed 7.5 RPM
No-load current ≤ 40 mA
Load current ≤ 0.3 A
Load torque 15.9 kg·cm
Power 7.2 W
Stall torque 30 kg·cm
Stall current 0.85 A
Gear ratio 600:1
Shaft diameter 6 mm
Approx. weight 163 g
Rotation Reversible
Self-locking Yes



Reversible rotation

The rotation direction can be changed by reversing the DC power supply polarity.

An H-bridge or another suitable motor control circuit can be used to control the motor in both directions.

Worm gear reduction

The gearbox provides a 600:1 reduction ratio, resulting in reduced output speed and increased torque.

The worm gear mechanism also provides self-locking, helping prevent the output shaft from freely rotating when the motor is switched off.
