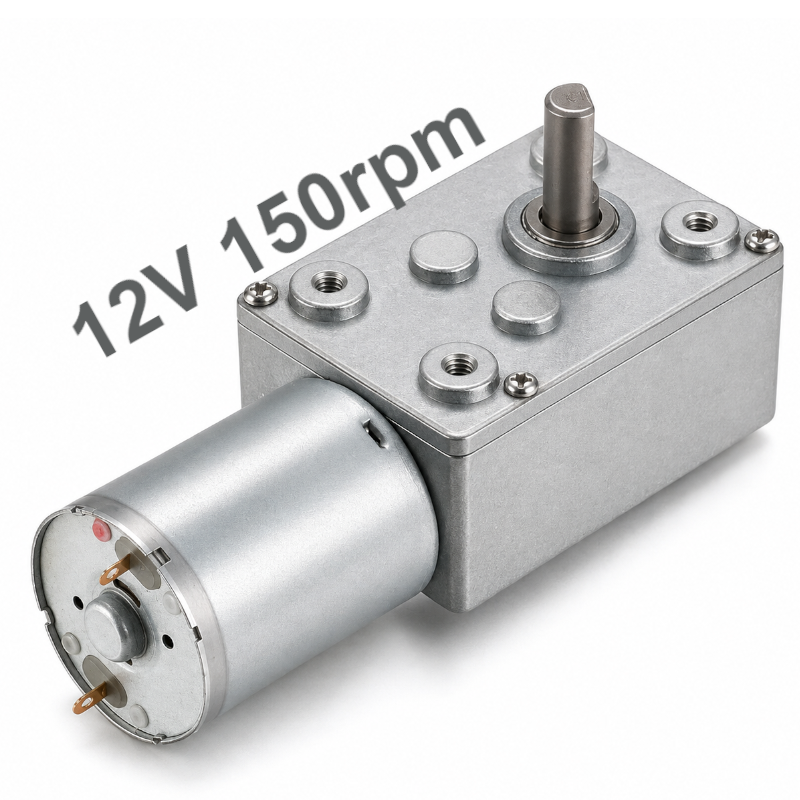

JGY370 Reversible High Torque Worm Geared 12V 150rpm

: MOT02135
€9.90
Tax included

JGY370 DC motor with worm gear reduction, 12 V and 150 RPM, featuring high torque, reversible rotation and self-locking capability. Ideal for applications requiring slow movement and position control.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



The JGY370 is a DC motor with a worm gear reduction gearbox, designed to provide controlled movement and increased torque compared with a conventional DC motor.

This version operates at 12 V DC and provides a 150 RPM no-load speed and approximately 120 RPM under load. The rotation direction can be changed by reversing the DC power polarity.

The worm gear reduction system also provides self-locking of the output shaft when the motor is not powered, helping maintain the mechanism's position.



Features:

Model JGY370
Type DC geared motor
Gearbox Worm gear
Configuration Single shaft
Rated voltage 12 V DC
No-load speed 150 RPM
Loaded speed 120 RPM
No-load current 45 mA
Load current 270 mA
Load torque 0.7 kg·cm
Stall torque 3.2 kg·cm
Stall current 1.5 A
Power 1.7 W
Gear ratio 37.3:1
Shaft diameter 6 mm
Rotation Reversible
Self-locking Yes
Approx. weight 163 g



The specifications above correspond to the JGY370 12 V / 150 RPM configuration found for this version.

Reversible rotation

The rotation direction can be changed by reversing the DC power polarity.

Worm gear reduction

The worm gear system provides a 37.3:1 reduction ratio, reducing motor speed while increasing the available output torque.

The gearbox also provides a self-locking function, helping keep the output shaft in position when power is removed.
