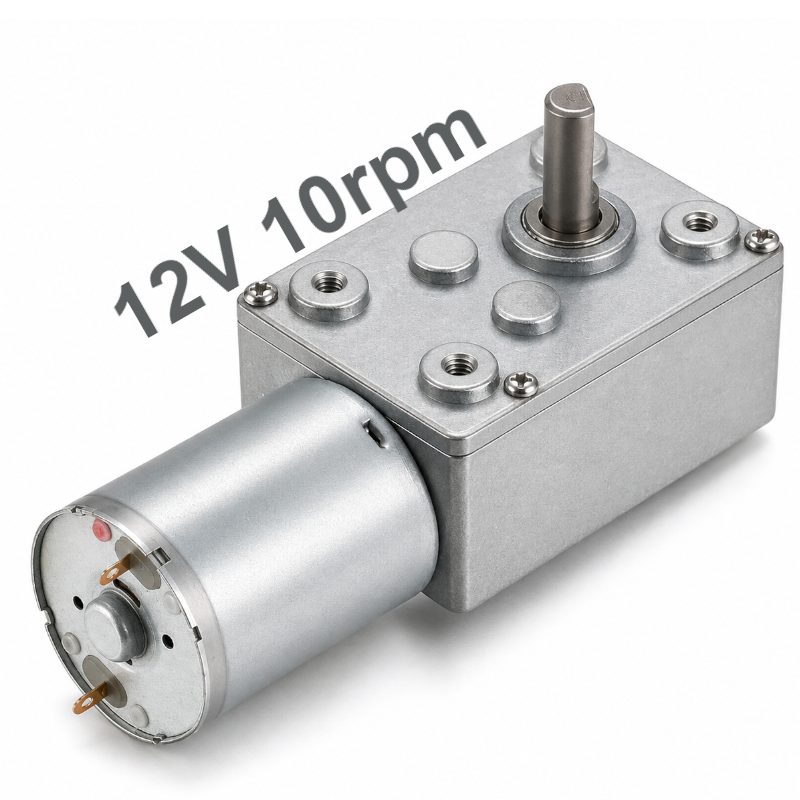

JGY370 Reversible High Torque Worm Geared 12V 10rpm

: MOT02134
€9.90
Tax included

JGY370 DC motor with worm gear reduction, 12 V and 10 RPM, featuring high torque, reversible rotation and self-locking capability. Ideal for applications requiring slow movement and position control.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.



The JGY370 is a DC motor with a worm gear reduction gearbox, designed to provide slow rotation with high torque.

This version operates at 12 V DC and provides a 10 RPM no-load speed. The rotation direction can be reversed by reversing the power supply polarity.

The worm gear reduction system also provides self-locking of the output shaft when the motor is not powered, helping maintain the position without free rotation of the shaft.



Features

FeatureSpecification
Model JGY370
Type DC geared motor
Gearbox Worm gear
Rated voltage 12 V DC
No-load speed 10 RPM
Loaded speed 8 RPM
No-load current 45 mA
Load current 230 mA
Load torque 9 kg·cm
Power 1.7 W
Stall torque 45 kg·cm
Stall current 1.5 A
Gear ratio 600:1
Shaft diameter 6 mm
Approx. weight 163 g
Rotation Reversible
Self-locking Yes



The speed, current, torque, power, gear ratio, shaft and weight specifications are consistent with technical listings for this specific 12 V / 10 RPM version.

Reversible rotation

The rotation direction can be changed by reversing the DC power polarity.

This allows the motor direction to be controlled using a suitable control circuit or H-bridge.

Worm gearbox with self-locking

The worm gearbox provides a high reduction ratio and allows the output shaft to remain locked when power is removed.

This feature is useful in mechanisms where the output position needs to be maintained without the shaft rotating freely.
