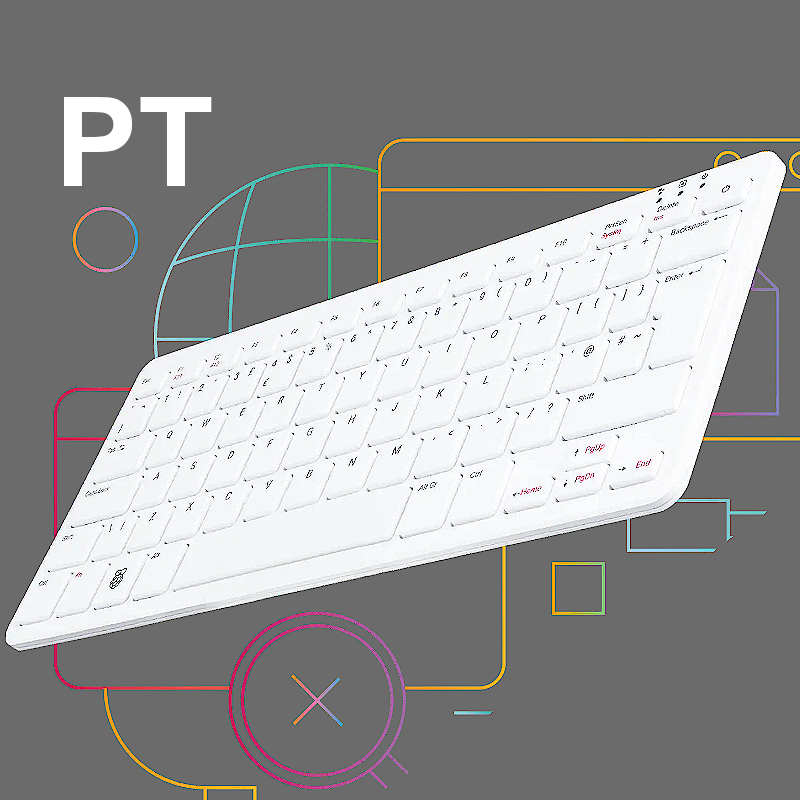

PT Version - Raspberry Pi500 Computer KIT ( PT Keyboard and PT Book) - Pi 5 8GB Pi500 KIT-PT

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

A fast and powerful computer built into a high-quality keyboard, delivering the ultimate compact PC experience.

The Raspberry Pi 500 features the same quad-core 64-bit Arm processor and RP1 I/O controller found in the Raspberry Pi 5. With an integrated single-piece aluminium heatsink for improved thermal performance, the Raspberry Pi 500 runs quickly and smoothly even under heavy workloads, while providing stunning dual 4K video output.

KEY FEATURES:
◾ Quad-core 64-bit Arm Cortex-A76 processor at 2.4GHz
◾ 8GB LPDDR4X-4267 SDRAM memory
◾ VideoCore VII GPU with OpenGL ES 3.1 and Vulkan 1.3 support
◾ Dual 4Kp60 HDMI® video output
◾ Dual-band 802.11ac Wi-Fi® and Bluetooth 5.0
◾ 2 USB 3.0 ports with simultaneous 5Gbps operation support
◾ 1 USB 2.0 port
◾ Gigabit Ethernet port
◾ Horizontal 40-pin Raspberry Pi GPIO connector
◾ Portuguese (PT) keyboard layout

SPECIFICATIONS
◾ Processor: 2.4GHz quad-core 64-bit Arm Cortex-A76, featuring:

• Cryptography extensions
• 512KB L2 cache per core
• 2MB shared L3 cache

◾ Memory: 8GB LPDDR4X-4267 SDRAM

◾ Connectivity

• Wi-Fi: Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac
• Bluetooth: Bluetooth 5.0, BLE
• Ethernet: Gigabit Ethernet

◾ USB Ports

• 2 × USB 3.0
• 1 × USB 2.0

◾ GPIO: Horizontal 40-pin GPIO header

◾ Video and Audio: 2 × micro HDMI ports (supports up to 4Kp60)

◾ Multimedia

• H.265 decoding (4Kp60)
• OpenGL ES 3.0 graphics

◾ SD Card Support

• microSD card slot (operating system and data storage)

◾ Keyboard

• Layout: PT
• Key type: compact

◾ Power Supply: 5V DC via USB connector (power adapter not included)

◾ Operating temperature: 0°C to +50°C

◾ Dimensions: 286 mm × 122 mm × 23 mm (maximum)

NOTES:
◾ Includes a 32GB A2 Class microSD card with Raspberry Pi OS (Bookworm) pre-installed.
◾ This Raspberry Pi 500 version does not include a power adapter, mouse, HDMI cable, or beginner’s guide.
◾ Recommended USB-C power supply should be 27W or higher (for example 035-4751 or 035-4832).
◾ Recommended HDMI cables: 019-0991 or 047-2946.
◾ There are no user-serviceable parts inside the Raspberry Pi 500. Opening the unit may damage the product and void the warranty.
◾ Some images may show a keyboard with a different layout than the one included in the kit. This product includes a Portuguese (PT) keyboard layout.
