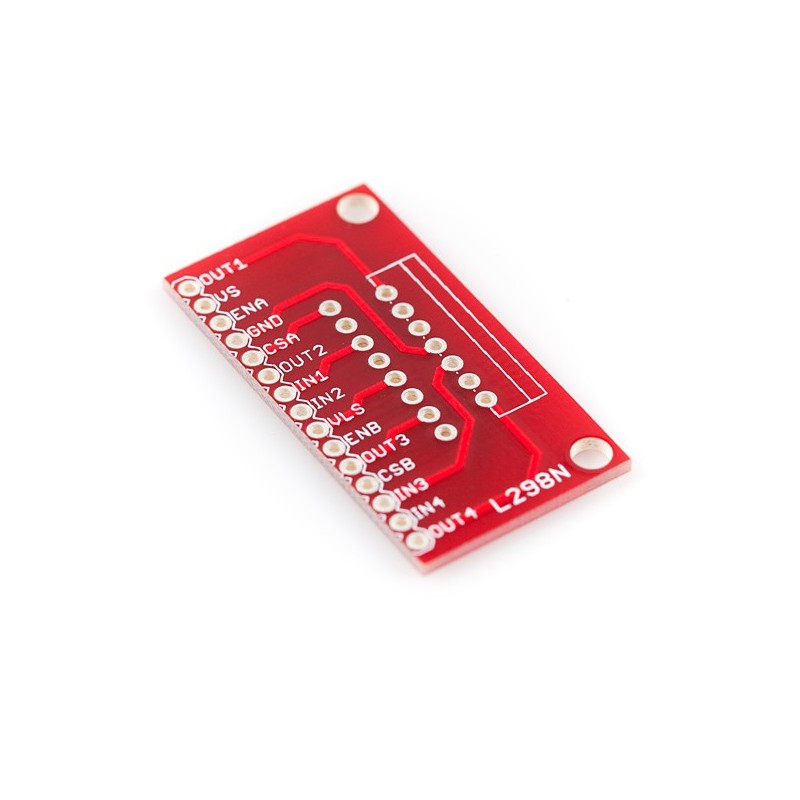

SparkFun Full-Bridge Motor Driver Breakout - L298N
: CEL05017
€2.85
Description: This is a breakout board for the L298N full-bridge dual motor driver; which comes in a staggered, Multiwatt package.
All pins of the L298N are broken out to a 15-pin 0.1" pitch header. Two mounting holes are also provided.
Dimensions:
- Board: 1.6x0.85 inches
Documents:
- Schematic
- Eagle Files
- Datasheet (L298N)
- GitHub (Design Files)
