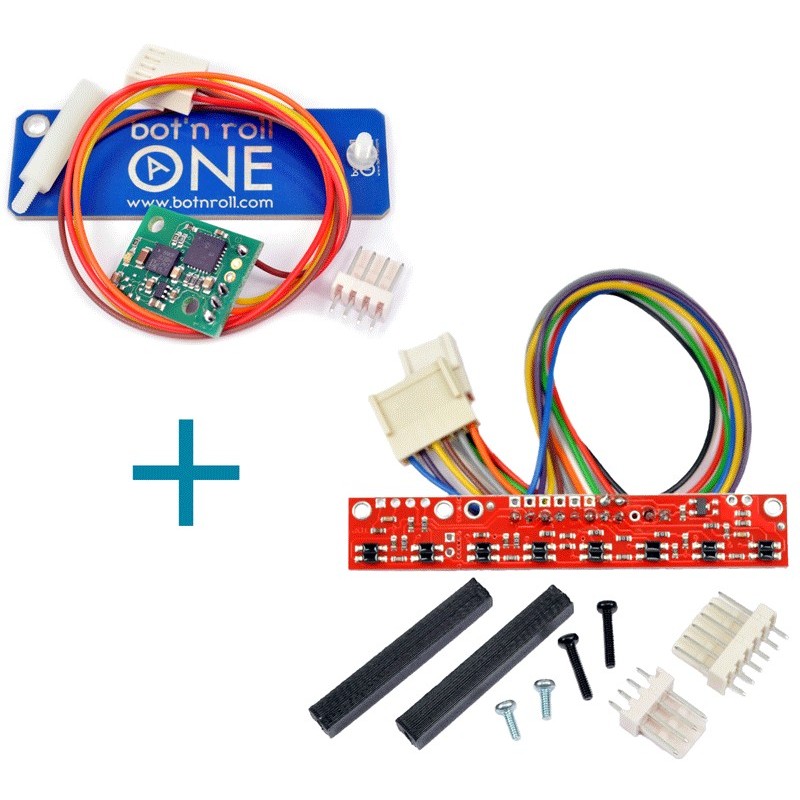

EXTRA ‘A’dvanced Line Follower + Compass All assemble parts included for mounting on a Bot'n Roll ONE A robot.



Quantity

The “A”dvanced extra was developed for making it possible for a robot to move autonomously on a track through the sensing of a line. Since the robot orientation and slopes detection is important for these type of challenges, the “A”dvanced extra also includes a 3 axis compass. This sensor contains all accessories required for a proper robot assembling, as well as all the necessary cables, for a quick and easy build up.



DEMO video: http://www.youtube.com/watch?v=wlcwjX9FvAI



Composition of Extra A

LINE FOLLOWER QTR-8A

1un QTR-8A Line Follower Sensor
1un Signal Cable Signal Cable for QTR-8A
1un Power Cable Power Cable for QTR-8ª
1un 6 pin shell Connector Shell Connector for soldering on robot (Signal cable connector)
1un 4 pin shell Connector Shell Connector for soldering on robot (Power cable connector)
1un Fixing system Fixing support for Line Follower

The QTR-8A sensor has been developed to follow a line, but can be used as a proximity sensor. The module contains 8 pairs of IR emitters/receivers (phototransistor).



COMPASS CMPS11

1un CMPS11 Compass 3 axis with tilt compensation I2C Compass
1un I2C Cable Cable already soldered on compass
1un 4 pin Connector Shell Connector for soldering on the robot (I2C cable connector)
1un Fixing System Fixing system to mount on the robot

ROB02001

Download

cmps10

Download (242.32k)

CMPS10_I2C.pdf

Download (188.7k)

QTR-8x.pdf

Download (957.11k)
