Bluetooth Shield (master/slave)
  • Bluetooth Shield (master/slave)
  • Bluetooth Shield (master/slave)
  • Bluetooth Shield (master/slave)
  • Bluetooth Shield (master/slave)
  • Bluetooth Shield (master/slave)

Bluetooth Shield (HC-05 master/slave)

:ARD03038
€17.32
Tax included

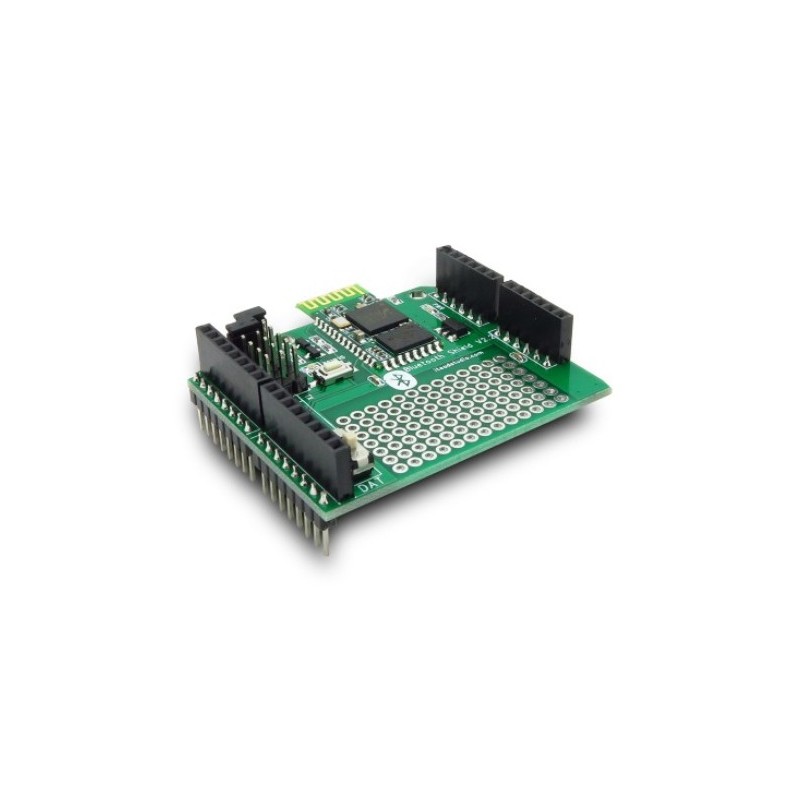

The Bluetooth Shield integrates a HC-05 Serial Bluetooth module. It can be easily used with Arduino for transparent wireless serial communication.

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The Bluetooth Shield integrates a Serial Bluetooth module. It can be easily used with Arduino/Iteaduino for transparent wireless serial communication. You can choose two pins from Arduino D0 to D7 as Software Serial Ports to communicate with Bluetooth Shield (D0 and D1 is Hardware Serial Port).



Features

  • Iteaduino/Arduino compatible
  • Up to10m communication distance in house without obstacle
  • UART interface (TTL) with programmable baud rate (SPP firmware installed)
  • Default baud rate: 38400(CMD MODE) / 9600(DATA MODE), data bits: 8, stop bit: 1, Parity: No parity
  • Default PINCODE:”1234”A full set of configuration commands
  • On board PCB antenna
  • FCC ID certificated



Specification

Version 2.2
Compatible Mainboard Arduino Deumlanove/UNO Arduino MEGA
Iteaduino
Iteaduino ADK
Iteaduino MEGA 2560
Iteadmaple
Simple Cortex
ChipKit UNO32
ChipKit MAX32
FEZ Panda II
Freeduino
Leaf maple
Seeeduino
Seeduino MEGA
Shield Functions Wireless
Prototype
Board Size 57mm x 47cm
Operation Level Digital 3.3V
Digital 5V
Stackable Yes
Model IM120417010
Accessories N/A
Weight 35.00g



Documents

Datasheet (BluetoothHC05)

Datasheet (IM120417010 BTShield)

Schematic

ARD03038
