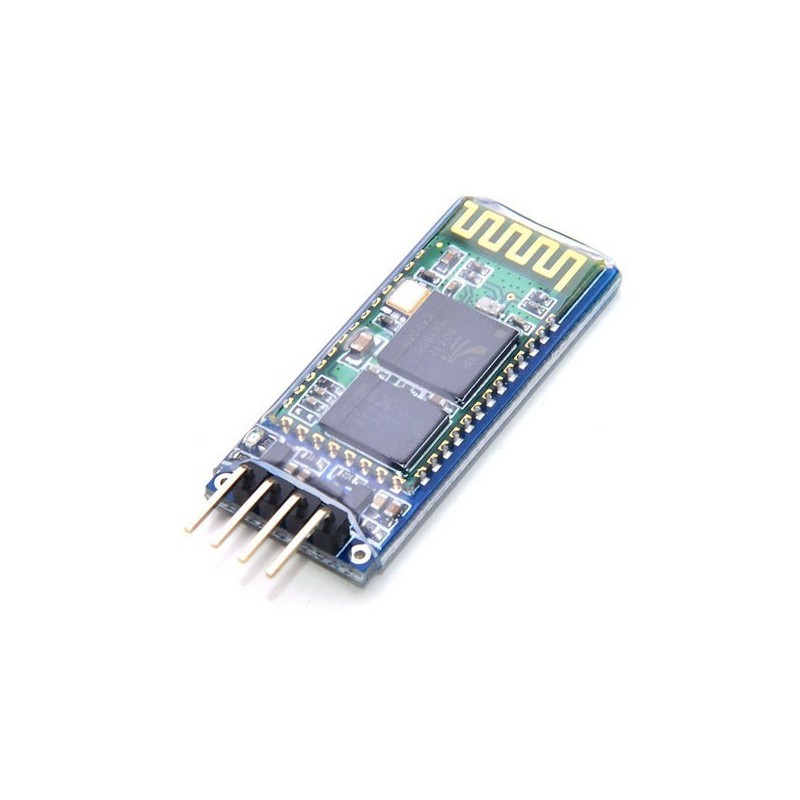

HC-06 Bluetooth serial pass-through module wireless serial communication

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

The Bluetooth Module presented integrates the HC-06 module. It integrates easily on the Arduino boards and gives you the option of Wireless Communication.

The HC06 Bluetooth Module allows one device to communicate with another device over the wireless network. Sending and receiving data can be achieved within 10 meters.

It has a standard 2-pin UART (Tx & Rx) connection that makes it very easy to connect to your microcontroller card such as Arduino.It allows a device to communicate with another device over the wireless network. Sending and receiving data can be achieved within 10 meters.

It has a standard 2-pin UART (Tx & Rx) connection that makes it very The HC-06 Bluetooth Module has a signal conditioning circuit (compatible with 3.3V and 5V) to easily connect the signal pins directly to Arduino boards or any 5V powered device.

You can also download the BLUETERM App - an Android App for Bluetooth communication with the Arduino and the HC-06 Module.

Technical specifications:

• Range: Up to 10m without obstacles;

Differences between Bluetooth module HC-05 and HC-06:

The basic difference between the modules is that the HC-05 can be configured in the Master, Slave and Loopback modes, and the HC-06 only in Slave mode.

Master Mode: The module can connect to other bluetooth devices.

Slave Mode: The module only receives connections from other Bluetooth devices
