Fermion: MEMS Ethanol EtOH Gas Detection Sensor (Breakout, 1-500ppm) - DFRobot SEN0569

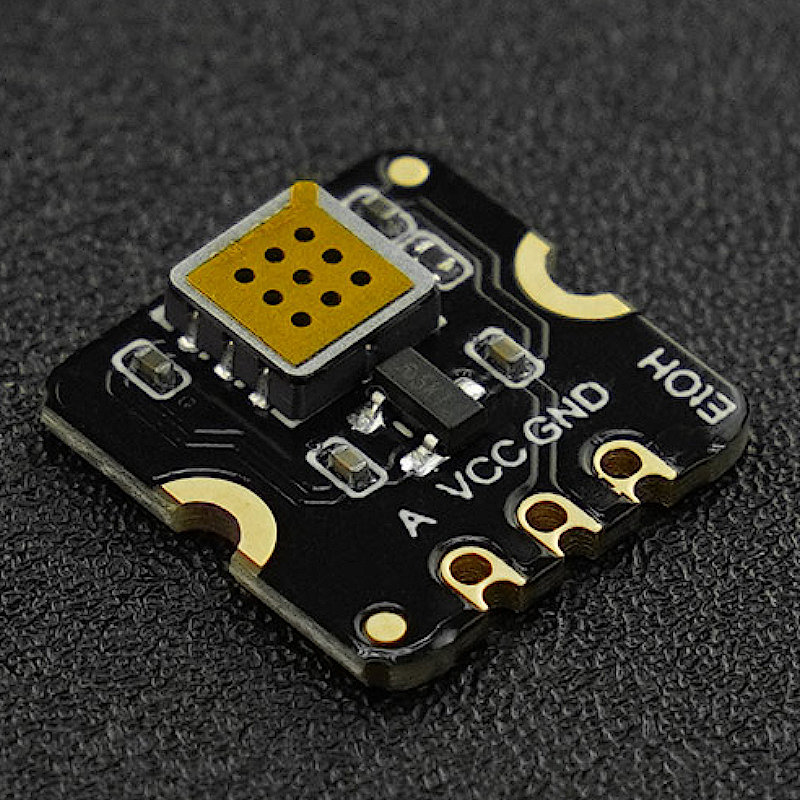

Fermion: MEMS Ethanol EtOH Gas Detection Sensor employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions (13x13x2.5mm), low power consumption (＜20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure ethanol concentration and is suitable for ethanol gas leakage and portable ethanol detector.

The MEMS series currently encompasses 11 different types of gas sensors (HCHO, CO, CH4, VOC, NH3, H2S, EtOH, Smoke, Odor, H2, NO2), which can be combined as per specific requirements.

Figure: Wiring Diagram of Fermion: MEMS EtOH Sensor and Arduino UNO

Precautions for use

1. Kindly remove the protective film before usage.

2. To prevent exposure to volatile silicon compounds vapors (such as silicone adhesive, hair gel, silicone rubber, or other locations where volatile silicon compounds are present).

3. Avoid exposure to high concentrations of corrosive gases (such as H2S, SOX, Cl2, HCl, etc.).

4. Prevent contamination from alkalis, alkali metal salts, and halogens.

5. Refrain from prolonged exposure to extreme environments (such as high temperatures, high humidity, high pollution).

6. Avoid contact with water, condensation, and freezing.

7. Minimize excessive vibration, impact, and dropping.

8. Please refrain from employing this module in systems that involve personal safety concerns.

9. For extended periods of non-usage, it is advisable to preheat the module for at least 24 hours.

1. Compact size, measuring only 13*13*2.5mm

2. Low power consumption, operating current ＜20mA

3. High sensitivity and rapid response recovery

4. Advanced MEMS technology

1. Breathalyzer: measures the blood alcohol content (BAC) of a person by analyzing their breath.

2. Indoor air quality monitoring: monitors the level of volatile organic compounds (VOCs) in the indoor environment.

3. Food quality control: measure EtOH emission from food samples and determine their shelf life or quality.

1. Gas detected: Ethanol (EtOH)

2. Detection range: 1-500ppm

3. Operating voltage: 3.3-5V

4. Operating current: ＜20mA

5. Output signal: Analog voltage

6. Sensitivity: R0(in air)/Rs(in 150ppm EtOH) ≥ 3

7. Operating temperature: -10-50℃

8. Operating humidity: 15-90%RH (non-condensing)

9. Lifespan: ≥5 years (in air)

10. Dimension：13×13 x 2.5mm/0.0.51×0.51x0.1"

1. Product wiki

2. Schematics & Dimension

3. Characteristic Parameter

1. Fermion: MEMS Ethanol EtOH Gas Sensor (breakout) × 1

2. 2.54mm pitch header pin × 1
