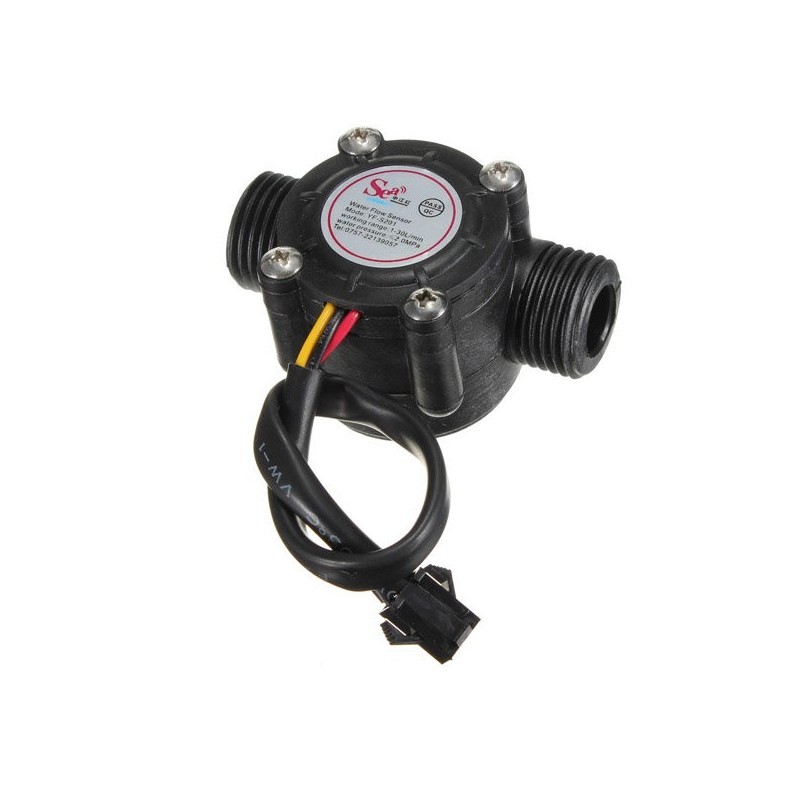

G1/2 Water Flow Sensor YF-S201

: SEN08006
€10.98
€5.61 Save €5.37

Water flow sensor 1/2" | 1~30 L/min  |  1.75Mpa max

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.

Features
  • Compact, Easy to Install
  • High Sealing Performance
  • High Quality Hall Effect Sensor
  • RoHS Compliant

Specifications
  • Mini. Wokring Voltage: DC 4.5V
  • Max. Working Current: 15mA (DC 5V)
  • Working Voltage: DC 5V~24V
  • Flow Rate Range: 1~30L/min
  • Load Capacity: ≤10mA (DC 5V)
  • Operating Temperature: ≤80℃
  • Liquid Temperature: ≤120℃
  • Operating Humidity: 35%~90%RH
  • Water Pressure: ≤1.75MPa
  • Storage Temperature: -25~+ 80℃
  • Storage Humidity: 25%~95%RH

Documentations



SEN08006

Download

MODEL: YF-S201

MODEL: YF-S201

Download (512.3k)
