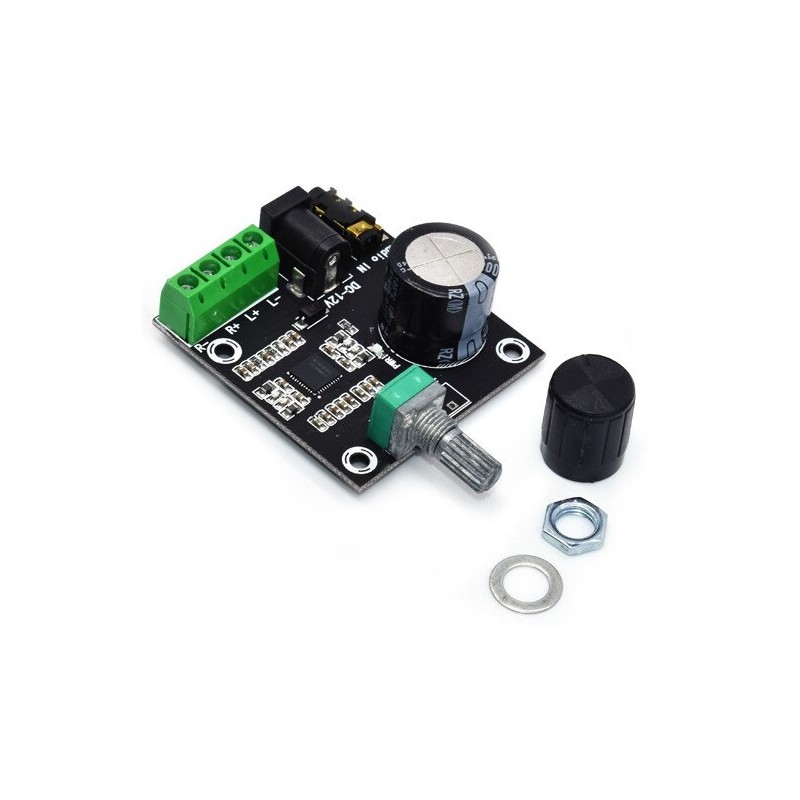

Hi-Fi Audio Amplifier 12V 2x10W Class D - PAM8610

: ELT03009
€7.95
Tax included

This slim little board has a class D amplifier onboard that can drive 2 channels of 8 ohm impedance speakers at 10W each. Power it with 6-15Vdc using the onboard DC power jack and plug stereo line level into the 3.5mm stereo headphone jack and jam out with ease.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

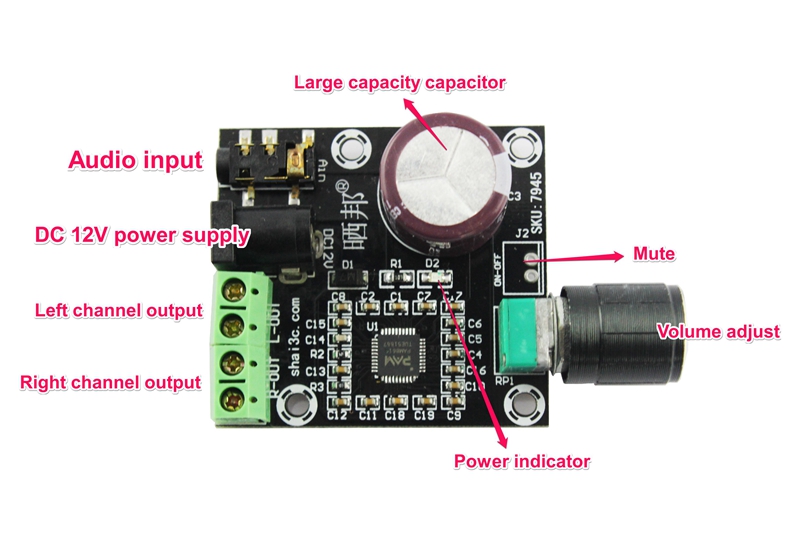

 IOs

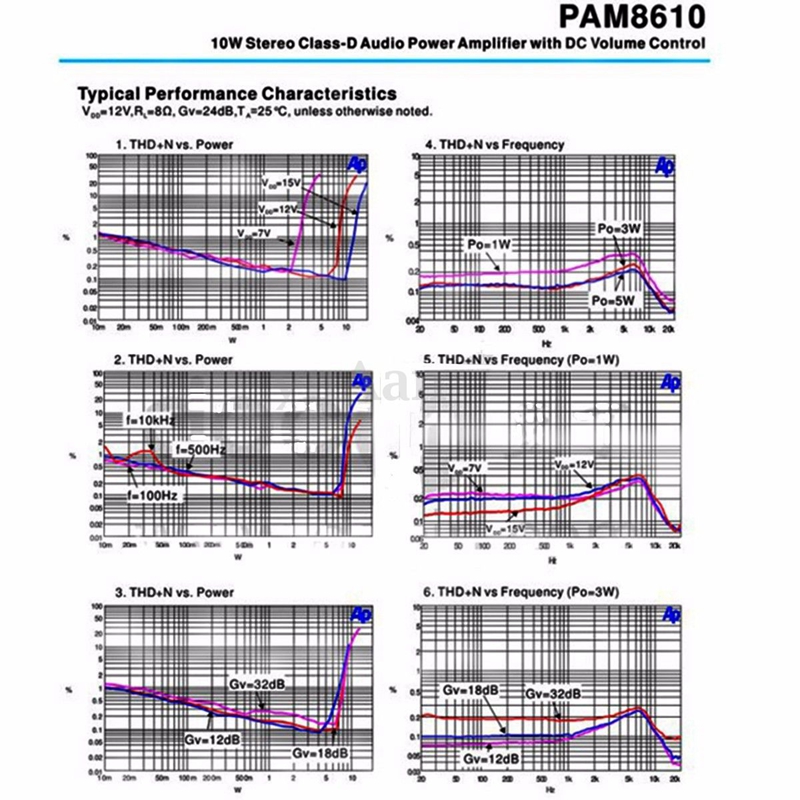

Performance Characteristics

  • Features

    • Model: XH ~ M120/li>
    • Work: Class D (PWM modulation)
    • Chip selection: PAM8610
    • Scope of supply: DC6 ~ 15V
    • Recommended supply voltage: 12V, the center PIN of 12VDC is "+"
    • Keep pushing Voltage: DC12V
    • Output Power: 15W * 2
    • Channel Type: Dual Channel
    • SNR:90dB
    • Frequency response:20Hz-15KHZ
    • Quiescent current:20MA(DC 12V)
    • Recommend Speaker:10~100W
    • Input Impedance:20M
    • Harmonic distortion<0.1％
    • Dimensions: 43mm x 47mm

    Package list

    • PAM8610 15W*2 Dual Channel 12V Digital Audio Amplifier Module x 1
