Raspberry PI LCD1602 Add-on

Overview

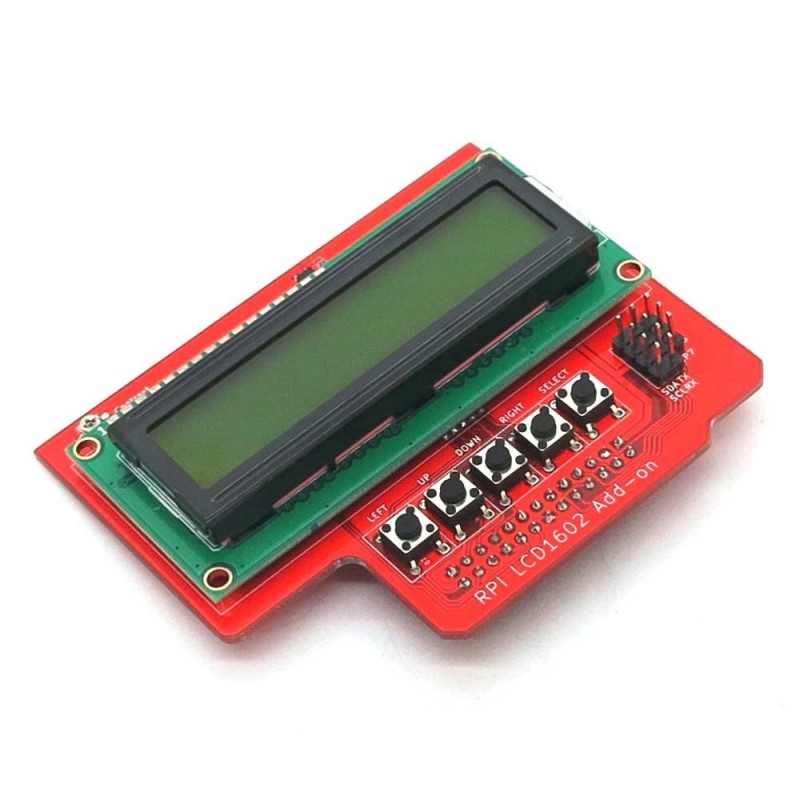

Raspberry PI LCD1602 Add-on is customized for Raspberry Pi interfaces based on LCD1602 display module. With GPIO’s on Raspberry Pi, it can be used to control the contents to be displayed; with software, it can be used to control the backlight for on and off. Buttons on the module can be used to control cursor location on the screen. In addition, electronic brick interface can bring more expanded functions for the Raspberry Pi.

Compatibility with Raspberry Pi B+

This Add-on is blocked by the Ethernet port, but it doesn't affect the compatibility of the Raspberry Pi B+ interface.

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Datasheet

• DS_IM131227002.pdf2013-12-28 05:57:27277.4KB

Schematic

• SCH_IM131227002.pdf
