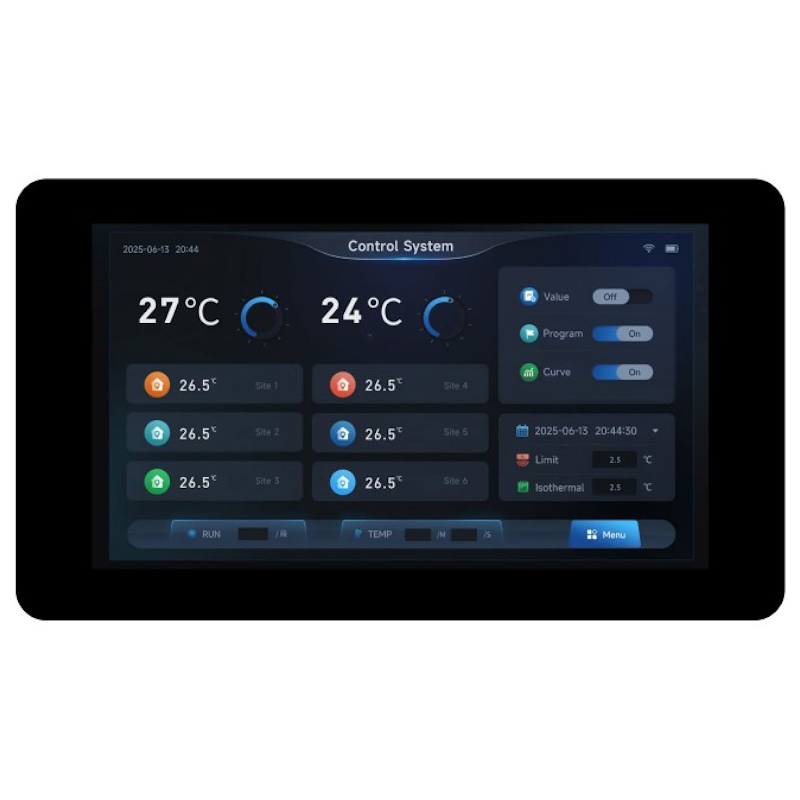

ESP32-S3 7inch Touch Display 1024x600 IPS With Onboard Antenna - Waveshare 31726

: LCD01181
€49.90
Tax included

This is a low-cost, high-performance MCU development board designed by Waveshare. It supports 2.4GHz Wi-Fi and BLE 5, integrates large-capacity Flash and PSRAM, and features an onboard 7inch capacitive touch LCD screen, enabling smooth operation of GUI programs like LVGL. Combined with various peripheral interfaces (such as CAN, I2C, and RS485), it facilitates rapid development of HMI and other applications for the ESP32-S3. With a wide range of functions and interfaces, it can meet power consumption requirements in Internet of Things (IoT), mobile devices, smart home and other applications.

If you want to know more about this product, please check its Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

ESP32-S3 7″ LCD Development Board

1024 × 600 resolution, backlight adjustable, multiple peripheral interfaces

ESP32-S3-Touch-LCD-7B, front view and specifications

Features

This product is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

  1. Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency

  2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna

  3. Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

  4. Onboard 7inch LCD display, 1024 × 600 resolution, 65K color

  5. Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)

  6. Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port

  7. LED indicators for easy monitoring of power status and battery charging status

  8. Supports backlight adjustment and real-time battery voltage monitoring

  9. Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios



Application scenarios

ESP32-S3-Touch-LCD-7B, Applications scenarios



IPS Display Panel

Excellent display performance, 170° viewing angle

ESP32-S3-Touch-LCD-7B, IPS Display Panel



Supports multiple peripherals

Supports the expansion of multiple peripherals via Sensor, CAN, RS485, and I2C interfaces

ESP32-S3-Touch-LCD-7B, Supports multiple peripherals



Application Example

ESP32-S3-Touch-LCD-7B, Applications example

for reference only, please refer to the Package Content for the detailed part list





What's On Board

ESP32-S3-Touch-LCD-7B, what's on board

  1. ESP32-S3-WROOM-1-N16R8 module
    The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, integrated 8MB PSRAM and 16MB Flash

  2. Display panel connector

  3. Touch panel connector

  4. TF card slot

  5. USB Type-C port

  6. UART1 Port
    USB TO UART Type-C port

  7. UART2 header
    UART1 and UART2 are the same UART, selected by switch

  8. I2C header

  9. Sensor header

  10. CAN header

  11. RS485 header

  12. 5V output

  1. 3.7V Lithium battery PH2.0 header

  2. CAN terminal resistor selection

  3. RS485 terminal resistor selection

  4. UART selection
    select UART1 or UART2

  5. BOOT button
    Press and hold while powering on for program burning

  6. RESET button

  7. DONE
    Lithium battery charging completed indicator

  8. CHARGE
    Lithium battery charging indicator

  9. POWER
    Power supply indicator



Outline dimensions

ESP32-S3-Touch-LCD-7B, with touch control


Development board size

ESP32-S3-Touch-LCD-7B, Development Board Size

Resources & Services

Wiki: docs.waveshare.com/ESP32-S3-Touch-LCD-7B



Package Content

Weight: 0.3605 kg

  1. ESP32-S3-Touch-LCD-7B × 1

  2. HY2.0 2P to 2PIN male cable × 3

  3. HY2.0 3P to 3PIN male cable × 1

  4. HY2.0 4P to 4PIN male cable × 2

  5. Screws pack × 1

1ESP32-S3-Touch-LCD-7B2HY2.0-2P-to-dupont-2P-red-black-10cm_93.jpg3HY2.0-2P-to-dupont-3P-red-black-10cm_93.jpg4HY2.0-2P-to-dupont-4P-red-black-10cm_93.jpg5ESP32-S3-Touch-LCD-7-10_93.jpg
