8.0INCH CAPACITIVE TOUCH DISPLAY TOUGHENED GLASS 1280×800, HDMI, IPS, OPTICAL BONDING SCREEN - WAVESHARE 23741

:LCD01155
€79.90
Tax included

8DP-CAPLCD is a mini universal capacitive touch screen with HD resolution and is compatible with most standard HDMI devices. It boasts a toughened glass capacitive touch panel that results in a smooth multi-touch effect while being thin and lightweight. The baseboard comes with fixed nuts, which enables users to integrate it into an all-in-one project more conveniently.

If you want to know more about tis product, please check the Wiki Page.

Quantity
Last items in stock

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

8″ Touch Display

HD Resolution | Multi-Point Touch | Full Color

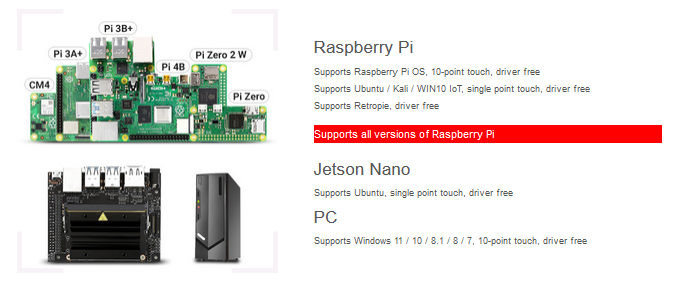

Device & System Support






Connection Examples

Working with Raspberry Pi 4B




Working with Raspberry Pi 3B+




Working with Raspberry Pi Zero 2W


* additional mini HMDI adapter and USB cable are requied





Working with Jetson Nano






Working with mini PC

for reference only, the above controller boards or host are not included.




IPS Display Panel

Excellent Display Performance With 178° Wide Viewing Angle






Capacitive 10-Point Touch


  1. up to 10-point touch, depending on the operating system

  2. up to 6H hardness toughened glass panel

  3. Optical Bonding, display well and dustproof





Adjustable brightness via software




Interface Introduction




Dimensions



Resources & Services


Wiki: www.waveshare.com/wiki/8DP-CAPLCD





Support touch screen customization

Support the following ways to customize the touch screen display in bulk order





Package Content

Weight: 0.406 kg

  1. 8DP-CAPLCD ×1

  2. HDMI flat cable ~1m ×1

  3. USB-A to USB-C cable ~1m ×1

  4. Button board ×1

  5. Button board cable ×1

  6. USB to Type-C adapter (B) ×1

  7. USB to Type-C adapter (C) ×1

  8. HDMI to Micro HDMI adapter ×1

  9. HDMI adapter ×1

  10. Screwspack ×1
