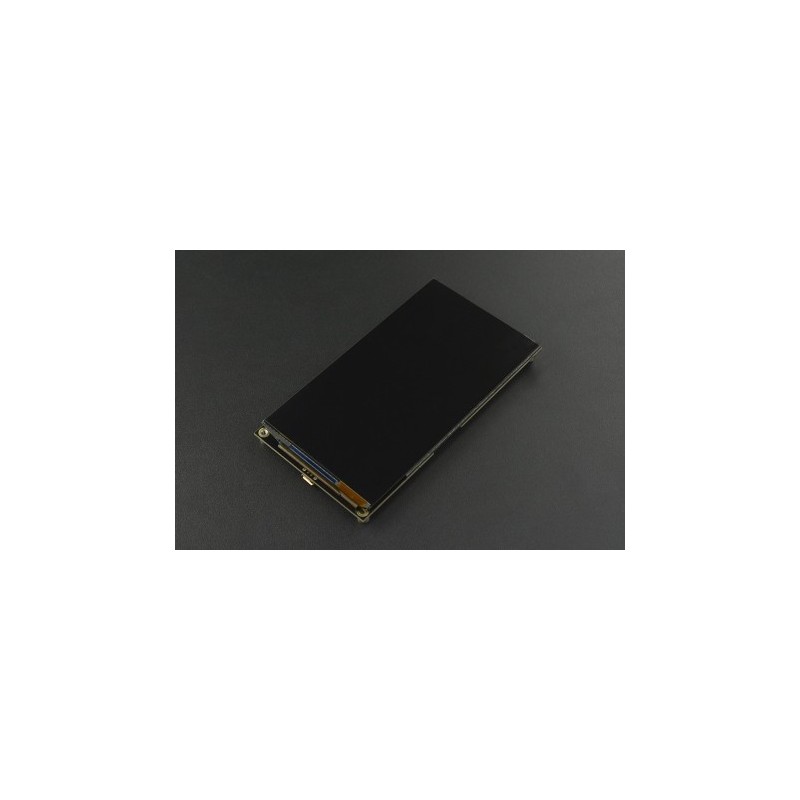

5.5" 1920x1080 mini-HDMI OLED Display with Capacitive Touchscreen

: LCD01107
€97.36

DISCONTINUED

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

INTRODUCTION

This is a 5.5" mini-HDMI OLED-Display with Capacitive Touchscreen. It has 1920×1080 HDMI high-definition output and comes with a capacitive touch panel on its screen. The touch panel supports multi-touch which can simultaneously identify 5 touch points at most. Besides, the USB touchscreen adopts DFRobot driver-free technology. So without the special requirement of installing drivers, the touchscreen can be used as easy as a keyboard or a mouse. It can be directly plugged into a computer for touching control, which is able to replace the mouse. In combination with an HDMI display screen, the display device turns into a tablet PC in seconds!

The screen supports three mainstream operating system: Windows, Linux, and MACOS. It can work with Lattepanda, Raspberry Pi and other devices with HDMI output, which can truly be totally compatible with all platforms. The design of the special hole on the back of the screen is convenient for the direct installation of the product in Raspberry PI's controller. There is no need to provide an external power supply for the screen as it can be powered by USB port. In addition, the display supports hardware backlight adjustment. The function can be easily realized by turning the potentiometer on the back of the display.

DFR0524-Intro
DFR0524-Features
DFR0524-High Definition Screen
DFR0524-High Definition Screen
DFR0524-Multi Touch
DFR0524-Designed for Raspberry Pi
DFR0524-Operating System





FEATURES



DFR0524-High Quality
DFR0524-Ultra thin
DFR0524-Brightness Adjustment



  • Capacitive Touchscreen, Support 5 Touch Points
  • Mini-HDMI Interface
  • USB Power Supply, Driver-free Installation





SPECIFICATION



DFR0524-Specification
  • Operating Voltage: 5V
  • Operating Current: 700mA
  • Refresh Frequency: 60Hz
  • Screen Resolution: 1920 x 1080
  • Visible Angle: 160°
  • Video Interface: MINI-HDMI
  • Touch Interface: Micro-USB
  • Dimension: 130mm x 71mm
  • Mounting Hole Size: M2.5
  • Outside Mounting Hole Position: 123mm x 64mm
  • Inside Mounting Hole Position: 58mm x 49mm
  • Weight :150g



DOCUMENTS



SHIPPING LIST

  • 5.5" 1920x1080 mini-HDMI OLED Display with Capacitive Touchscreen *1
  • Screw and Standoff *1
  • HDMI to Mini-HDMI Adapter *1
LCD01107
