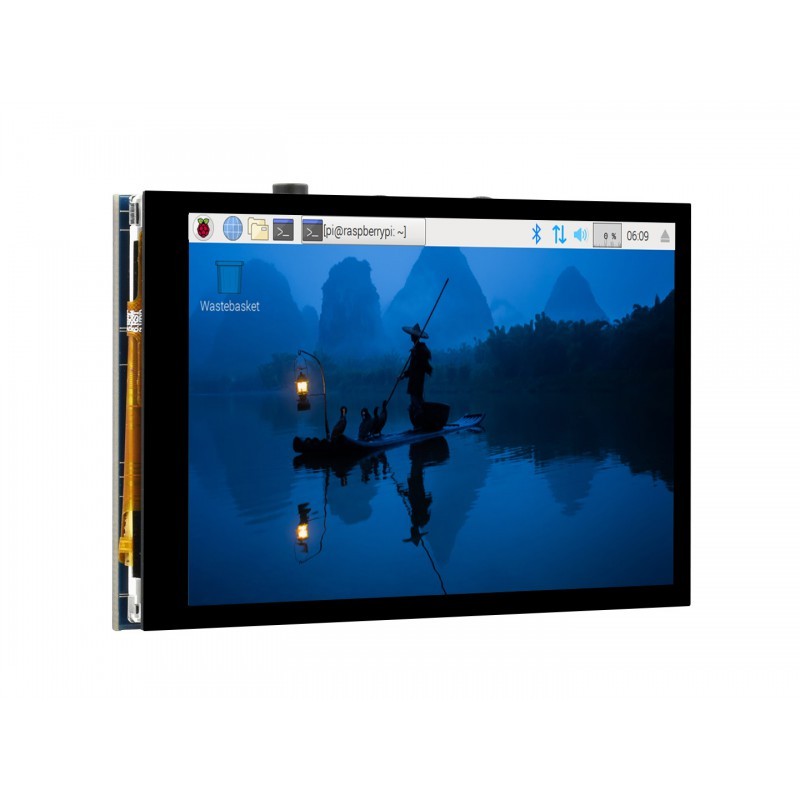

4inch Capacitive Touch Screen LCD for Raspberry Pi, 480×800, DPI, IPS, Toughened Glass Cover, Low Power

: LCD01136
€28.33

4inch Capacitive Touch Screen LCD For Raspberry Pi, 480×800, DPI, IPS, Toughened Glass Cover, Low Power Solution

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

" DPI Touch Display


  • SizeDimension.png4"
  • ResolutionResolution.png480×800
  • Display PortDPI.pngDPI666 (262K Colors)
  • Display PanelIPS.pngIPS
  • Viewing AngleViewing_angle.png170°
  • Touch TypeCapacitive_touch.pngCapacitive
  • Touch PointsFive_touch.png5-Points
  • Touch PortI2C.pngI2C
  • Touch PanelTempered_panel.pngToughened Glass
  • Power ConsumptionLow_power.pngLow Power
  • Audio DeviceSpeaker.pngSpeaker
  • Audio Output3.5mm-Audio.png3.5mm Jack

Device & System Support



Raspberry Pi

Based on Raspberry Pi 40PIN GPIO header
Driven by Raspberry Pi DPI666 interface, up to 60Hz refresh rate
5-Points touch control through Raspberry Pi I2C interface
Supports systems like Raspbian, Kali...

Supports future version which is backward compatible

  • The display orientation is portrait by default, 480×800 resolution (H×V). Change the software config for landscape display.
  • No audio output when working with Pi 4B for the moment.

Connection Examples

Working With Raspberry Pi 4


Working With Raspberry Pi 3B+


Working With Raspberry Pi Zero W


Display

IPS Panel


Touch Control

Touch-Screen-Top-C5T.jpg Touch-Screen.jpg

1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel.

Appearance And Dimensions
