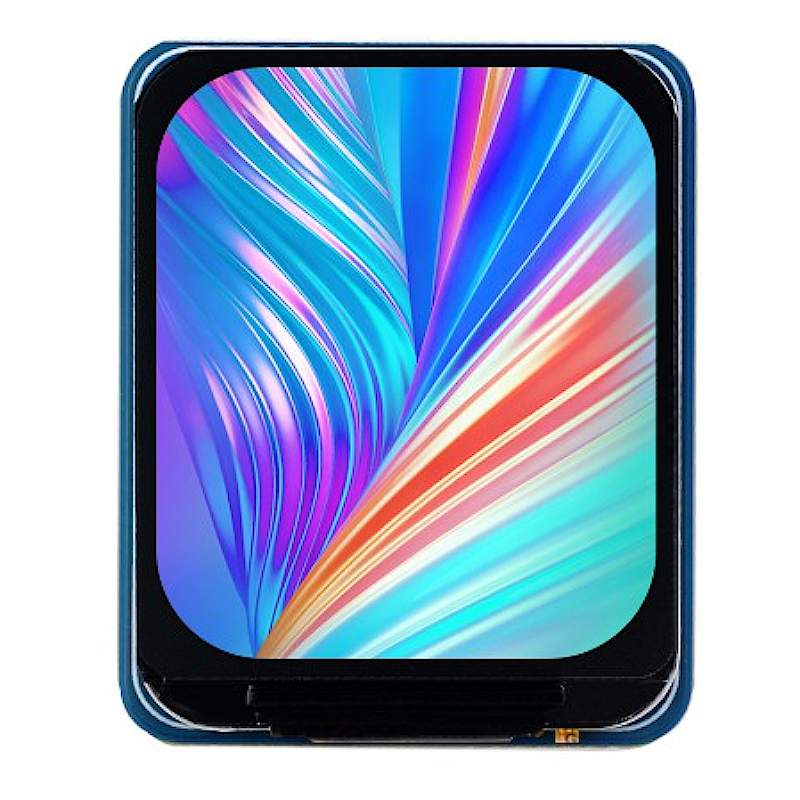

1.5inch RGB LCD Display IPS Rounded Corners 240×280 SPI - Waveshare 26118

: LCD01176
€9.90
Tax included

If you want to know more about this product, please check its Wiki Page.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.






Features at a glance

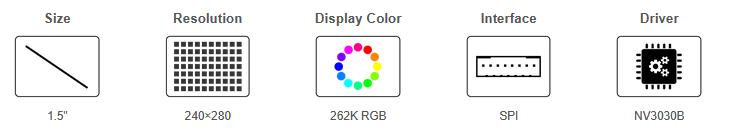

  1. 240×280 resolution, 262K RGB colors, clear and colorful displaying effect

  2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series

  3. Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)



Specifications

Operating voltage

3.3V / 5V

Resolution

240 × 280 pixels

Communication Interface

4-wire SPI

Display size

24.77×28.90mm

Display Panel

IPS

Pixel pitch

0.1032×0.1032mm

Driver

NV3030B

Dimensions

28.5×35.0mm



Controlled via SPI Bus

supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series




Hardware connection

connecting with Raspberry Pi


connecting with Arduino board


connecting with STM32




Usage Example

1.5inch-LCD-Module-details-11.jpg 1.5inch-LCD-Module-details-13.jpg

* for reference only, please refer to the Package Content for the detailed part list.



Product show




Outline dimensions




Resources & Services

Wiki: www.waveshare.com/wiki/1.5inch_LCD_Module



Package Content

Weight: 0.013 kg

  1. 1.5inch LCD Module x1

  2. MX1.25 8PIN cable x1

LCD01176
