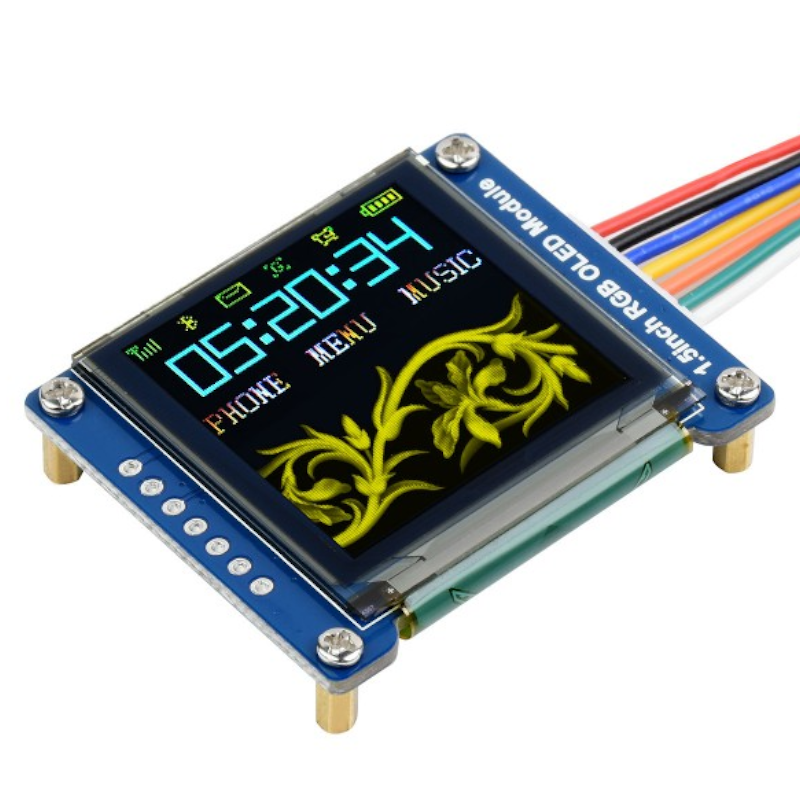

1.5inch RGB OLED Display 128x128 SPI - Waveshare 14747

: LCD01172
€17.90
Tax included

1.5inch RGB OLED Module provides Raspberry Pi, STM32, and Arduino demos.

If you want to know more about this product, please check its Wiki Page.

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.





Features at a glance

  1. 128×128 resolution OLED display, 65K RGB colors, clear and colorful displaying effect

  2. SPI interface, minimizes required IO pins

  3. Comes with development resources (examples for Raspberry Pi/Arduino/STM32)





Specifications

Operating voltage

3.3V/5V

Resolution

128×128 pixels

Communication Interface

3/4-wire SPI

Display size

26.86 × 26.86 mm

Display Panel

OLED

Pixel size

0.045 × 0.194 mm

Driver

1351

Dimensions

44.5 × 37.0 mm



Controlled via SPI Bus

Supports controller boards like Raspberry Pi/Arduino/STM32


VCC

Power (3.3V/5V input)

GND

Ground

DIN

Data input

CLK

Clock input

CS

Chip selection, low active

DC

4-wire SPI: Data/Command selection (high for data, low for command)
3-wire SPI: connect to GND, keeping low level

RST

Reset, low active





Hardware connection

Connecting with Raspberry Pi




Connecting with Arduino board





Outline dimensions



Resources & Services


Wiki: 1.5inch_RGB_OLED_Module



Package Content

Weight: 0.02 kg

  1. 1.5inch RGB OLED Module x1

  2. PH2.0 7PIN cable x1

11.5inch-RGB-OLED-Module-3_220.jpg  2PH2.0-7PIN_93.jpg
