TFT LCD 1.8" ITDB02-1.8SP
  • TFT LCD 1.8" ITDB02-1.8SP
  • TFT LCD 1.8" ITDB02-1.8SP
  • TFT LCD 1.8" ITDB02-1.8SP

TFT LCD 1.8" ITDB02-1.8SP

:LCD01013
€17.60
Tax included

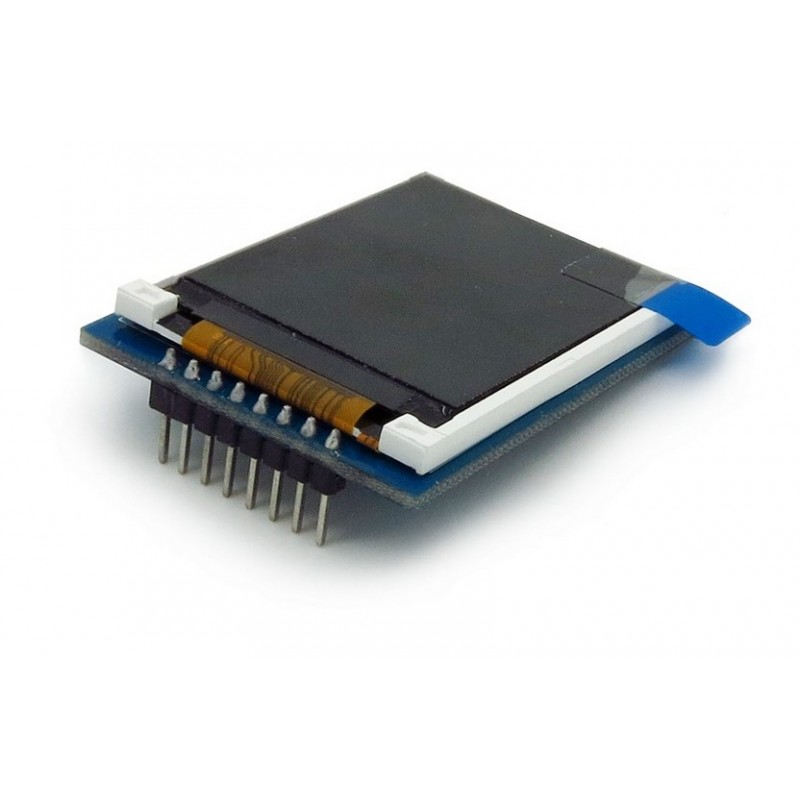

ITBD02-1.8SP is a 1.8" TFT LCD module with 262K colors 128x160 resolutions. The display interface is serial - 5 wires (CS,RS,SCL,SDA,RST) for controlling.

ITBD02-1.8SP is a 1.8" TFT LCD module with 262K colors 128 x 160 resolutions. The display interface is serial, so it just needs 5 wires (CS,RS,SCL,SDA,RST)  for controlling. The controller of this LCD module is ST7735.

ITDB02-1.8SP is supported by UTFT Library.



Hardware

Pin

Type*

Description

VIN

P

5V Power Supply pin

GND

G

Ground

RST

I

Reset，Low level active

RS

I

Data/Command selection

SDA

I

Serial data input

SCL

I

Serial clock input

CS

I

Chip Selection，Low level active

VDD33

P

3.3V Power Supply pin





Specification

Model IM120419001
Display Size 1.8“
Display Resolution 128 * 160
Display Interface Serial
Display Controller ST7735
Expand N/A
Board Size 50 x 37mm
Weight 30.00g




Documents

Demo Code

Datasheet (ST7735)

Datasheet (ITDB02 1.8SP)

Schematic

Library

LCD01013
