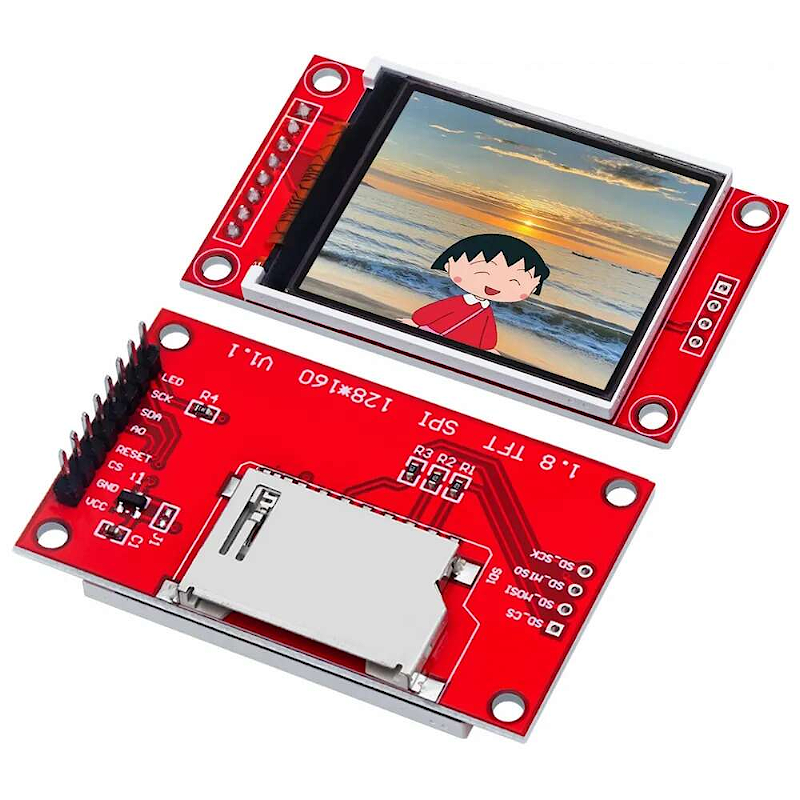

1.8 Inch TFT LCD Display Module SPI Interface 128 x 160 with 4 IO uses 4-wire SPI to communicate and has its own pixel-addressable frame buffer, it can be used with every kind of microcontroller. Even a very small one with low memory and few pins available!
The 1.8″ display has 128×160 colour pixels. Unlike the low-cost “Nokia 6110” and similar LCD displays, which are CSTN type and thus have poor colour and slow refresh, this display is a true TFT! The TFT driver (ST7735) can display a full 18-bit colour (262,144 shades!).
The breakout has the TFT display soldered on (it uses a delicate flex-circuit connector) as well as an ultra-low-dropout 3.3V regulator and a 3/5V level shifter so you can use it with 3.3V or 5V power and logic. We also had a little space so we placed a microSD card holder so you can easily load full-colour bitmaps from a FAT16/FAT32 formatted microSD card.
Features :
-
1.8-inch serial SPI colour display module
-
Support analogue SPI and hardware SPI
-
The LCD has a wide viewing angle, the contrast is also very suitable.
-
Easy to expand the experiment with an SD card slot
Pin Configuration:
|
Number
|
Pin Label
|
Description
|
|
1
|
VCC
|
5V/3.3V power input
|
|
2
|
GND
|
Ground
|
|
3
|
CS
|
LCD chip select signal, low level enable
|
|
4
|
RESET
|
LCD reset signal, low level reset
|
|
5
|
A0
|
LCD register / data selection signal,high level: register, low level: data
|
|
6
|
SDA
|
SPI bus write data signal
|
|
7
|
SCK
|
SPI bus clock signal
|
|
8
|
LED
|
Backlight control, high level lighting,if not controlled, connect 3.3V always bright
|
Specifications:
|
Screen Size
|
1.8(inch)
|
|
Type
|
TFT
|
|
Driver IC
|
ST7735
|
|
Resolution
|
128*160 (Pixel)
|
|
Module Interface
|
4-wire SPI interface
|
|
Active Area (AA area)
|
28.03×35.04(mm)
|
|
Module PCB Size
|
34.5×58.0(mm)
|
|
Operating Temperature
|
-20℃~60℃
|
|
Storage Temperature
|
-30℃~70℃
|
|
VCC power voltage
|
3.3V~5V
|
|
Logic IO port voltage
|
3.3V(TTL)
|
Applications:
-
Embedded system displays.
-
Arduino and Raspberry Pi projects.
-
Industrial control panels.
-
IoT devices.
-
Portable instruments.
-
DIY electronics projects.
-
User interface displays.
