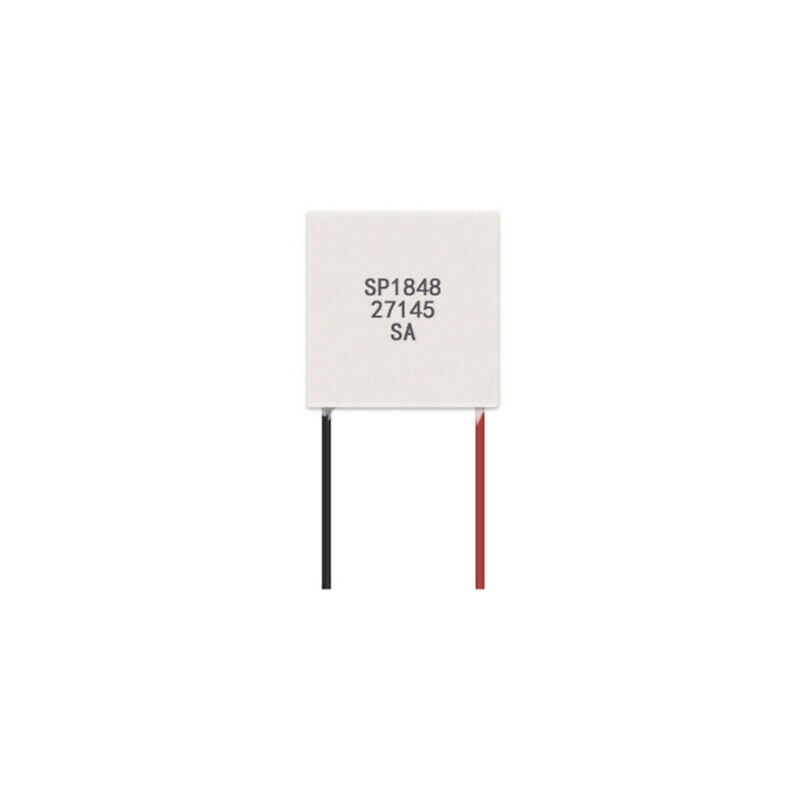

Thermoelectric Power Generator 3W TEG Module TEC1-27145 SP1848 40x40mm

:FAL10000
€4.59

Estimated power generated value based on Temp difference between the 2 faces:
20° => 0.97V, 225mA
40° => 1.8V, 368mA
60° => 2.4V, 469mA
80° => 3.6V, 558mA
100° => 4.8V, 669mA

Quantity
Out-of-Stock


If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Thermoelectric Power Generator TEG Module

Specifications:

  • Material: Ceramic / Bismuth Telluride
  • Color: White
  • Parametric model: SP1848-27145
  • Temperature(C): 150 degree
  • Open-circuit voltage(V): 4.8V
  • Current(mA): 20/0.97/225; 40/1.8/368; 60/2.4/469; 80/3.6/559; 100/4.8/669
  • Module weight: 25g / 0.89oz
  • Module size: 4 * 4 * 0.4cm / 1.6 * 1.6 * 0.2inch (L * W * H)
  • Package weight: 26g / 0.92oz
  • Package size: 14.5 * 10 * 0.4cm / 5.7 * 4 * 0.2inch (L * W * H)

Features:

  • Small and lightweight, convenient for use.
  • Designed specifically for power generation.
  • Sealed for moisture protection and contain thermal elements formulated for optimum Seebeck power generation.
  • High temperature 150C, with NM static protection.


Estimated power generated value based on Temp difference between the 2 faces:

  • 20° => 0.97V, 225mA
  • 40° => 1.8V, 368mA
  • 60° => 2.4V, 469mA
  • 80° => 3.6V, 558mA
  • 100° => 4.8V, 669mA


The side with writings is the cooling side, and the other side is the hot side.
