Wemos® TTGO LORA32 868Mhz SX1276 ESP32 Oled Display bluetooth WIFI Lora

:PCO05072
€23.29
Tax included

This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Notes:

The 868MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip)
Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged!
With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin!

Description:

This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance.

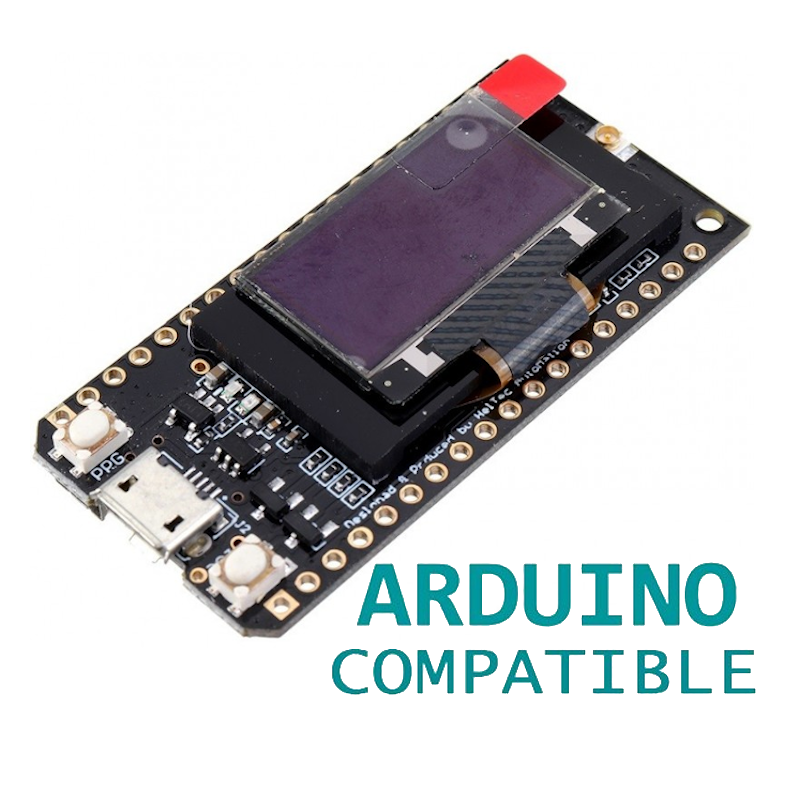

the onboard 32MB Flash wi-fi antenna, 0.96 inch blue oled display, lithium battery charging circuit, CP2102 interface and USB serial chip, the perfect support for Arduino development environment, can be used for program checking and product development is very easy and fast.
Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes
Data rates: 150 Mbps @ 11n HT40., 72 Mbps @ 11n HT20, 54 Mbps @ 11g, 11 Mbps @ 11b
transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
receiver sensitivity up to -98 dBm
UDP sustained throughput of 135 Mbps


Pin diagram:

Pinout ESP32

Arduino Board Selection:

Board Selection

Select Example:

Example Selection



Package included:

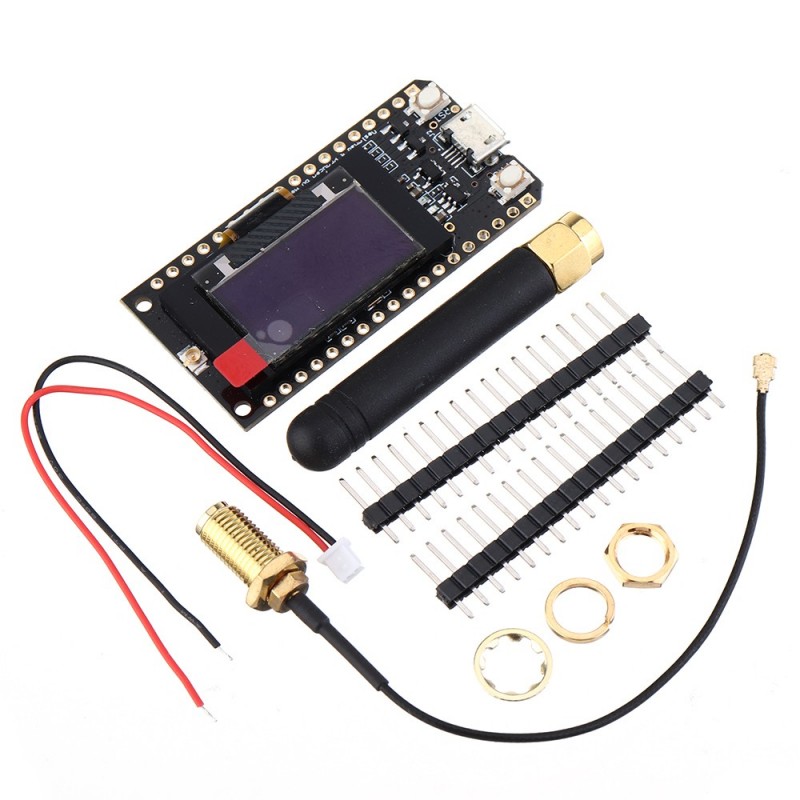

1 x Wemos® TTGO LORA32 868Mhz SX1276 ESP32
1 x 868MHz Antenna
1 x Battery cable
2 x 18 Pin Header
