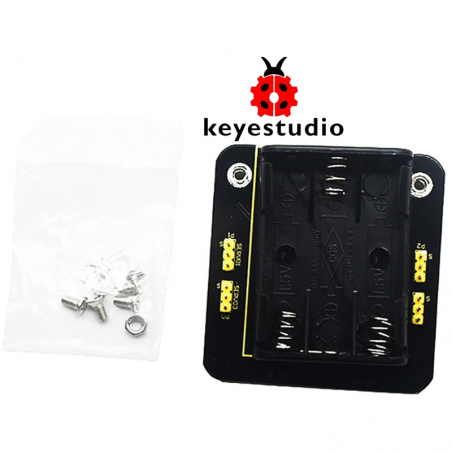

AAA Battery Holder for micro:bit Robot - Keyestudio KS0493

:PCO07036
€5.49
Tax included

This shield is fully compatible with micro bit control board. It comes with SK6812-P4 RGB LED and 4 3pin ports with 2.54mm pitch.

Fix battery holder with 2M3*6MM flat screws and 2 M3 nuts, place 3 AAA batteries (not included) inside, and install the micro bit control board on the mini servo car shield with 5 M3*6MM screws.

If you want to know more about this product, please check the Wiki Page

Quantity

If you have any questions on this product please feel free to contact us.

*Disclaimer: The images are merely illustrative.

Overview

This shield is fully compatible with micro bit control board. It comes with SK6812-P4 RGB LED and 4 3pin ports with 2.54mm pitch.

Fix battery holder with 2M3*6MM flat screws and 2 M3 nuts, place 3 AAA batteries(not included) inside, and install the micro bit control board on the mini servo car shield with 5 M3*6MM screws.

When the right DIP switch on the shield is dialed to the ON end, the battery box supplies power, when dialed to the OFF side, the power can’t be provided.

When the left DIP switch is dialed to RGB end, the micro: bit control board can control the color of 5 SK6812-P4 RGB LEDs by code, moreover, the 3pins port at the pxl-bxt can connect SK6812-P4 RGB LED modules and control their colors;when set to SERVO end, micro:bit can regulate the angles of 3 external servos connected to 3pin ports of SERVO1 SERVO2 SERVO.
