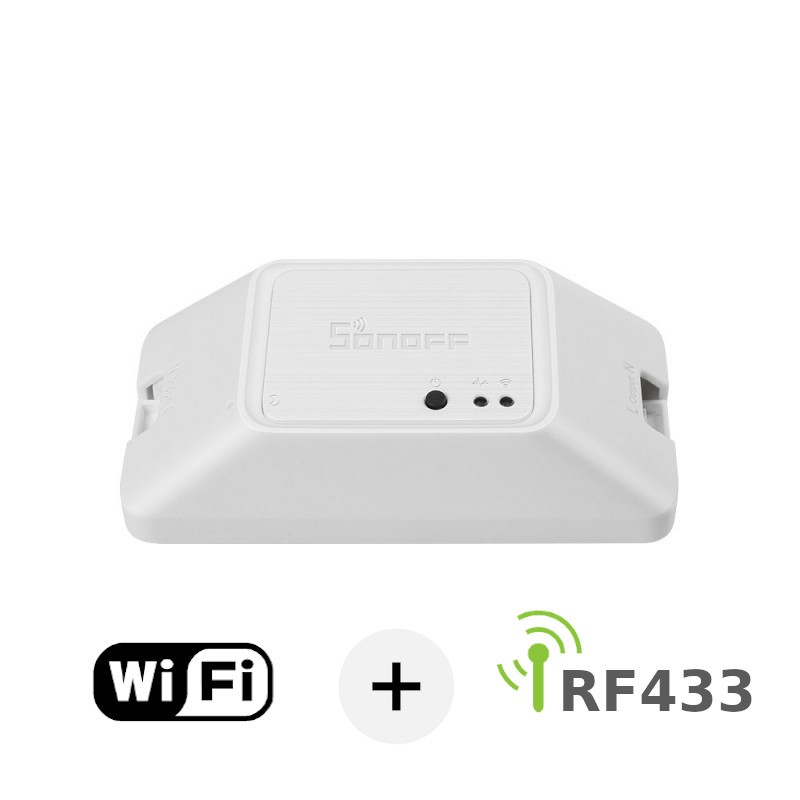

SONOFF RFR3 - WIFI e RF Smart Switch

:MRE04031
11,79 €
preço com IVA incluído

Novo modelo do SONOFF RF.

Sonoff RFR3 possui um design moderno que pode ficar visível em sua  casa ou escritório. Sonoff com uma saída a relé WiFi de baixo custo que lhe permite controlar iluminação ou outros dispositivos através do seu smartphone, bem como através de um comando RF (vendido em separado COM05061).

Quantidade

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

This is a WiFi Smart Switch with the DIY capability that makes it possible to control connected devices via the eWeLink directly from your phone, or ask it to turn on/off devices with Amazon Alexa and Google Assistant. Amazingly, it has a DIY mode that is the firmware can be user-defined. Built-in a web server that exposes the REST AP, which allows you to connect the switch with your existing home automation system. Compatible with Vera, Fibaro, HomeSeer, Savant, Home Assistant, etc, for the protocol document and the code for the DIY Mode tool (updating), please go to Github on https://github.com/itead/Sonoff_Devices_DIY_Tools

Unlike the BASICR3, RFR3 provides you extra control helper - the matched RM 433 remote controller. Just choose the control way you preferred, simply set a timer to let your devices switch on/off automatically at a pre-set time through a day. For example, prepare your coffee maker in the evening, and a cup of coffee is ready for you in the next morning. Compatible with the IFTTT function, and you can make more actions happen to trigger other devices, or receive a notification on your phone once the action was triggered.

Along with support for smart scenes, just set a device to turn on/off to make another or a boatload of devices turn on/off. The LAN control is designed for situations which no available Wi-Fi connection, or an unsteady Wi-Fi network environment. A convenient option that is share control is capable of allowing you to manage the same device with your family or friends together, simply share it on the eWeLink app to try. Amazingly, the module with unique DIY function, the way you can assemble it with your ordinary appliances to turn them into intelligent.

Note: If you want to use Sonoff RFR3 in the underwater environment, you can use SONOFF IP66 , the waterproof level of this waterproof box is IP66.

Check out the amazing features of SONOFF RFR3 below:



Specification of SONOFF RFR3

  • Max Current: 10A;
  • Max Power: 2200W;
  • Power Supply: AC 100-240V;
  • Gang: 1;
  • Wireless Standard: IEEE 802.11 b/g/n 2.4GHz, 433.92MHZ;
  • Enclosure Material: PC V0;
  • Product Dimensions: 91*43*25(mm);

Certification

Download Center



Smart Home Product List

Product NameFeatureLAN ControlInput VoltageMax CurrentMax PowerWireless FrequencyWikiShopping
Sonoff Basic Wireless control switch Yes 90~250V AC 10A 2200W 2.4Ghz Click Click
Sonoff RF WiFi & RF smart switch Yes 90~250V AC 10A 2200W 2.4Ghz,433MHz Click Click
Sonoff SV Low voltage Input Yes 5~24V DC 10A 240W  2.4Ghz Click Click
Sonoff TH10/TH16 Monitor temp.&hum. NO 90~250V AC 10A/15A

2200W(10A)

3500W(15A)

2.4Ghz Click Click
 Sonoff Dual Remote control 2 devices NO 90~250V AC 16A 3500W  2.4Ghz Click  Click
 Sonoff Pow Report power &power usage NO 90~250V AC 15A 3500W  2.4Ghz Click  Click
 Sonoff Pow R2 Upgraded power monitoring switch NO 90~250V AC 15A 3500W  2.4Ghz NO Click
 Sonoff G1 GPRS/GSM smart switch NO 90~250V AC 16A 3500W  2.4Ghz Click  Click
Sonoff 4CH (R2) 4 Gang WiFi wireless switch NO 90~250V AC 10A 2200W  2.4Ghz Click  Click
Sonoff 4CH Pro (R2) 4 Gang WiFi & RF 3 working mode switch NO 90~250V AC/ 5~24V DC 10A/Gang 2200W/gang  2.4Ghz, 433MHz Click  Click
Sonoff LED App control dimming LED NO 180~265V AC 0.6A 42W  2.4Ghz NO Click
Sonoff Touch WiFi wall touch switch Yes 90~250V AC 2A 400W  2.4Ghz NO Click
Sonoff T1 UK WiFi RF wall touch switch Yes(1 gang only) 90~250V AC 2A/gang 600W/gang 2.4Ghz,433MHz NO Click
Sonoff T1 EU WiFi RF wall touch switch Yes(1 gang only) 90~250V AC 2A/gang 600W/gang 2.4Ghz,433MHz NO Click
Sonoff T1 US WiFi RF wall touch switch Yes(1 gang only) 90~250V AC 2A/gang 600W/gang 2.4Ghz,315MHz NO Click
Sonoff Slampher Wireless control light holder Yes 90~260V AC 2A 200W 2.4Ghz,433MHz Click Click
Sonoff B1 Dimmable White&Color Bulb NO 90~250V AC 2A 6W 2.4Ghz NO Click
Sonoff S20 EU/US/UK/AU/CN Smart socket Yes 90~250V AC 10A 2200W 2.4Ghz Click Click
Sonoff S26 EU/US/UK/AU/CN Smart Plug Yes 90~250V AC 10A 2200W 2.4Ghz NO Click
Sonoff S30 US Smart socket Yes 110~125V AC 10A - 2.4Ghz NO Click
Sonoff S31 US smart plug NO 90~264V AC 16A - 2.4Ghz NO Click
Sonoff iFan 02 LED celing fan driver NO 90~250V AC Fan-2A/Light-5A

Fan:500W

Light:1250W

2.4Ghz NO Click
1 Chnl Inching/self-locking Switch Access control switch Yes 5V/12V DC 10A 50/120W 2.4Ghz NO Click
Sonoff SC Monitor indoor environment NO USB 5V 80mA 0.4W 2.4Ghz Click Click
Sonoff RF Bridge 433  Remote control 433MHz RF devices NO USB 5V - - 2.4Ghz,433MHz Click Click
Sonoff L1 Smart LED Light Strip  Remote control LED Light Strip NO 12V DC - - 2.4Ghz NO Click
SONOFF BASICR3  WiFi DIY Smart Switch Yes AC 100-240V 10A 2200W 2.4Ghz NO Click
SONOFF RFR3  WiFi DIY Smart RF Control Switch Yes AC 100-240V 10A 2200W 2.4Ghz, 433MHz NO Click
SONOFF TX Series UK EU US  WiFi Smart Wall Switches Yes AC 100-240V 50/60Hz 2A Max 2A/Gang, 6A/Total Max / 2.4Ghz, 433MHz NO Click
SONOFF iFan03  Smart Ceiling Fan & Light Controller No AC100-240V 50/60Hz 5A / / 2.4Ghz, 433MHz NO Click
SONOFF MINI  Two Way Smart Switch Yes AC 100-240V 50/60Hz 10A Max / / 2.4Ghz NO Click
SONOFF SlampherR2  Smart Lamp Holder Yes AC 100-240V 50/60Hz / / 2.4Ghz, 433MHz NO Click
SONOFF S55  Smart Waterproof Socket Yes AC 100-240V 50/60Hz 10A-16A / / 2.4Ghz NO Click



For technical support, please go to Itead smart home forum

Additional Information

Weight 67 g
Discontinued No
Model IM1903140029
Link Wiki No
Works With Google Nest Yes
Works With Amazon Alexa Yes
Works With Google Assistant Yes
EWeLink Support Yes
MRE04031
