Sonoff TH16 - Sensor de Temperatura e Humidade WiFi Wireless Smart Switch para Domótica

Overview

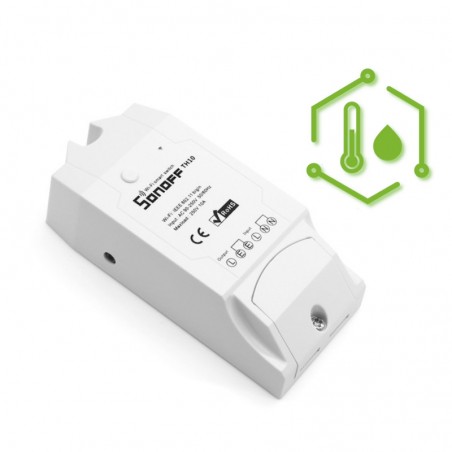

Sonoff TH10/TH16 is a wireless temperature and humidity monitoring switch which can remotely monitor and set temperature and humidity range to turn on/off connected appliances through the iOS/Android APP eWeLink. Just as the name indicates, the Sonoff TH temperature and humidity monitor device supports two maximum current supply specifications: 10A or 16A.

Sonoff TH10/ TH16 remote temperature monitor and wireless humidity monitor WiFi switch supports presetting the range for temperature or humidity. When the temperature or humidity of the environment falls within the range, it will automatically turn on or off the connected devices.

Sonoff TH10/ TH16 supports four kinds of temperature monitor and humidity monitor sensors, mentioned below:

• Si7021, AM2301, DS18B20, DHT11

Compare with other sensors, Si7021(wiki) is more accurate. It's highly recommended!

Note: the sensors are not in the package of Sonoff TH10 /TH16.

With the latest eWeLink app, users can create a series of simple conditional statement (Smart Scene) to trigger on/off other smart devices. This means users can use Sonoff TH10 or Sonoff TH16 with Si7021, AM2301, DS18B20 or DHT11 sensor to collect temperature/humidity data, which can be used to as a condition to trigger on/off other devices, such as Sonoff, Sonoff RF, Sonoff SV, S20 smart socket (see below pic). This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system, etc.

We are selling two kinds of sensors: AM2301 and DS18B20(measures temperature only). We've customized an interface for Sonoff TH10/TH16 to easily connect with the sensor-just plug and play. Note that the sensor should be plugged before power up. It is not advised to plug or unplug the sensor in power on state. Furthermore, AM2301 is non-waterproof, while DS18B20 is waterproof.

Useful Links:

User Manual for Sonoff TH WiFi Wireless Switch

Features

• Supports tracking device status
• Supports remote turn on/off connected appliance
• Supports presetting temperature and humidity to turn on/off
• Supports 8 enabled countdown/single/repeat timing tasks
• Support checking real-time temperature and humidity
• Support setting smart scene to trigger on/off other smart devices
• Works with Amazon Echo, Echo Dot, Amazon Tap
• Works with Google Home
• Works with Google Nest

Specification

• Input voltage: 90~ 250V AC
• Input current: Max 10A /16A
• Max. Power: 2200W(10A) /3500W(16A)
• Humidity: 5%-90%RH, Non-condensing
• Operating Temperature: 0ºC-40ºC(32°F-104°F)
• Wireless Standard: 802.11 b/g/n
• Security Mechanism: WPA-PSK/WPA2-PSK
• Enclosure Material: Fire-retardant ABS V0
• Dimension: 114*51*32 (mm)
• Supports 4 temperature, humidity sensors: Si7021, AM2301, DS18B20, DHT11
• Gang: 1
• Certification: CE, RoHS, FCC

Si7021 Sensor

• Temperature Measuring Range: –40℃~+85°C
• Humidity Measuring Range: 0~100%RH
• Storage Temp.: –65℃~+150°C
• Operating Voltage: 2.2-3.6V
• Weight: 26g
• Length: 0.5m

AM2301 Sensor

• Temperature Measuring Range: -40℃~+80℃
• Humidity Measuring Range: 0~99.9%RH
• Power Supply: 3.3-5.2V DC (5V recommended)
• Temperature Sensor Type: Resistive
• Humidity Sensor type: Capacitive
• Weight: 22g
• Length: 0.5m

DS18B20 Sensor

• Type: Waterproof temperature sensor
• Probe: Stainless steel temperature probe
• Temperature Measuring Range: -55℃~+125℃
• Power Supply: 3.0-5.5V
• Weight: 26g
• Length: 1m

Download Related CE/ RoHS Certificate and Report.

For technical support, please go to Itead smart home forum
