ITDB02 Arduino MEGA Shield

DESCRIÇÃO EM PORTUGUÊS BREVEMENTE DISPONÍVEL

Se tiver alguma dúvida neste produto não hesite em contactar-nos.

*Atenção: as imagens são meramente ilustrativas.

Overview

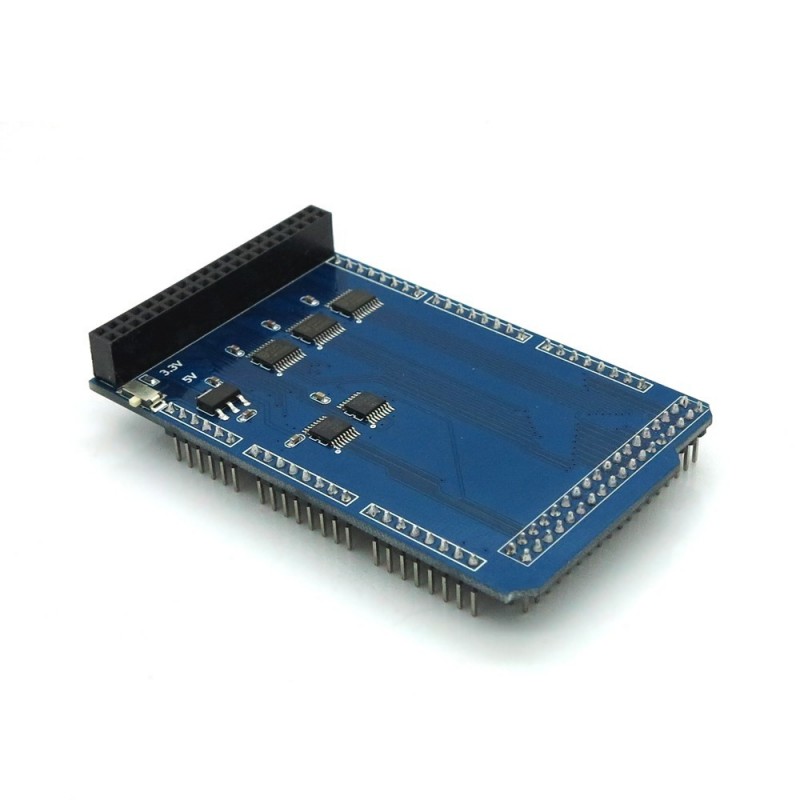

The ITDB02 LCD module works in 3.3V voltage level and it's not compatible with Arduino MGEA pins , so we make a shield for Arduino MEGA. Now user can directly plug the ITDB02 in the shield and stand on the Arduino MEGA board.

ITDB02 Arduino MEGA shield support both 3.3V mainboard and 5V mainboard, so it not just can be used with Arduino MEGA but can with other Arduino MEGA compatible mainboards , like ChipKit MAX32.

Note: It does not support Iteaduino Mega.

Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents by correcting the errors, adding more demo codes or tutorials.

Datasheet

• DS_IM120417024_ITDB02ArduinoMEGAShield.pdf2012-06-19 02:07:46363.9KB

Schematic

• SCH_IM120417024_ITDB02ArduinoMEGAShield.pdf
