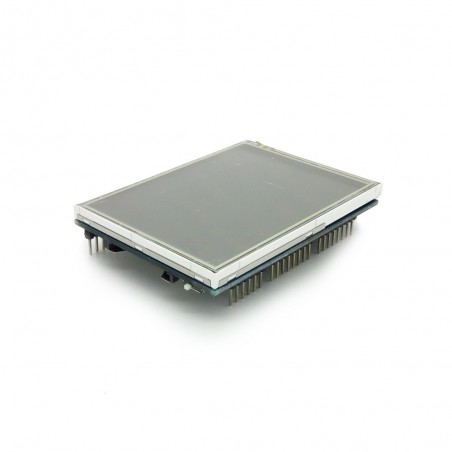

Arduino 3.2" TFT LCD Touch shield is an Arduino Mega compatible multicolored TFT display with touch-screen and SD card socket. It is available in an Arduino MEGA shield compatible pinout for attachment. The TFT driver is based on SSD1289 with 8bit data and 4bit control interface.
The Arduino 3.2" TFT LCD Touch shield can work with both 3.3V and 5V, so it can dispaly on Chipkit MAX32 as well.
This shield is compatible with UTFT library for Arduino Mega, chipKit Max32 and
their compatible boards. You can down load the library here: http://henningkarlsen.com/electronics/library.php?id=52
Arduino Mega PIN |
Description |
D2 |
T_IRQ |
D3 |
T_DOUT |
D4 |
T_DIN |
D5 |
T_CS |
D6 |
T_CLK |
D22 |
DB8 |
D23 |
DB9 |
D24 |
DB10 |
D25 |
DB11 |
D26 |
DB12 |
D27 |
DB13 |
D28 |
DB14 |
D29 |
DB15 |
D30 |
DB7 |
D31 |
DB6 |
D32 |
DB5 |
D33 |
DB4 |
D34 |
DB3 |
D35 |
DB2 |
D36 |
DB1 |
D37 |
DB0 |
D38 |
RS |
D39 |
WR |
D40 |
CS |
D41 |
RST |
D50 |
SD_MISO |
D51 |
SD_MOSI |
D52 |
SD_SCK |
D53 |
SD_NSS |
Version | 1.0 |
---|---|
Compatible Mainboard |
|
Shield Functions |
|
Board Size | 80mm x 58mm |
Operation Level |
|
Stackable | No |
Model | IM120417021 |
Accessories | N/A |
Weight | 70.00g |
Datasheet (IM120417021 3.2 TFT LCD Touch_Shield)
